ANL Fuse & ANL Fuse Holder

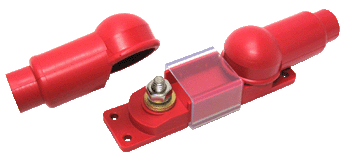

Our ANL fuses are available ranging from 50 to 500 amps. Our ANL fuse holder is molded from glass-filled nylon, and comes in Red and Black. The ANL holder includes the holder base, insulating cover, 2 terminal insulators, 4 flat washers, 2 spring washers, and 2 nuts.
ANL Fuses |
ANL Fuse Holder |
|
|
ANL Fuse 200 Amp |
ANB740N9 - 5/16" Post |
| Compare MEGA Fuse & ANL Fuse | Fuse Holder Specifications & Numbers |
| * | Highly cost effective solutions for 50 - 500 amp fusing |
ANL Fuses, 50 through 300 Amp
ANL Fuses, Ceramic 300, 350, 400, 500 amp
|
| * |
Fuse Amperage Available : 50, 80, 100, 150, 200, 250 Recommended Fuse Holder: ANB740N9N02 (5/16") |
|
| * | Fuse Holder ANB740 Max Amperage: 300 amps @ 12 vdc | |
| * | Max Voltage : 48 vdc | |
| * | ANB740 Series accepts large and narrow slot ANL Fuses | |
| * |
Ceramic Fuse Amperage Available : 300, 350, 400, 500 Recommended Fuse Holder: ANB753N9 |
|
| * | ANL Fuse Kit includes fuse block, two (2) 487 Series terminal insulators, hardware and cover | |
| * | ANL Fuses sold seperately | |
| * | Base Material : Glass-filled nylon | |
| * | Colors Available : Red & Black | |
| * | Included terminal insulators protect conductive areas from accidental shorts, complying with ABYC / USCG requirements | |
| * | Connection Post Material : Stainless Steel | |
| * | Lock Washer Material : Stainless Steel | |
| * | Flat Washer Material : Brass | |
| * | For fuses over 300 amp, we recommend our Hi-Amp ANL Fuse Holder |
| Model | Amperage | Body |
|---|---|---|
| ANF340050 | 50 amp | PES |
| ANF340080 | 80 amp | PES |
| ANF340100 | 100 amp | PES |
| ANF340150 | 150 amp | PES |
| ANF340200 | 200 amp | PES |
| ANF340250 | 250 amp | PES |
| ANF340300 | 300 amp | PES |
| ANFC340300 | 300 amp | Ceramic |
| ANFC340350 | 350 amp | Ceramic |
| ANFC340400 | 400 amp | Ceramic |
| ANFC340500 | 500 amp | Ceramic |
| PES = Polyethersulfone | ||
| Kit Number | Base Holder | Insulator | Cable Entry | Cable Diameter |
|---|---|---|---|---|
| ANB740N0 | ANB740 | 487N9 | 9 | 0.75 in |
| ANB740N9 | ANB740 | 487N8 | 8 | 0.65 in |
| ANB740N8 | ANB740 | 487N7 | 7 | 0.6 in |
| ANB740N7 | ANB740 | 487N6 | 6 | 0.5 in |
