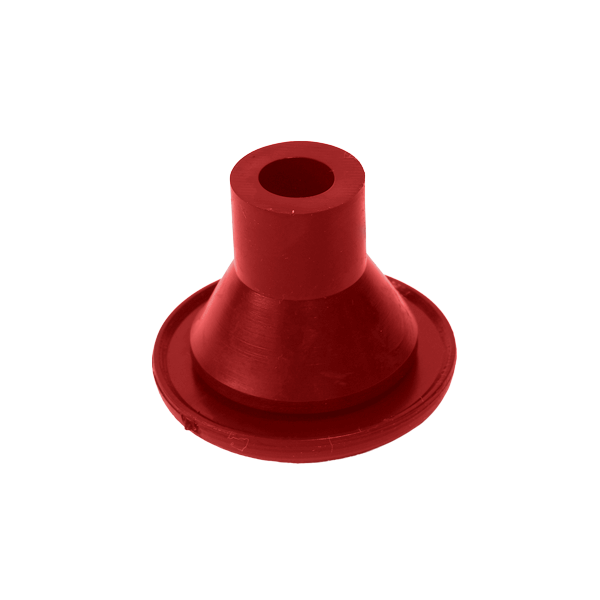

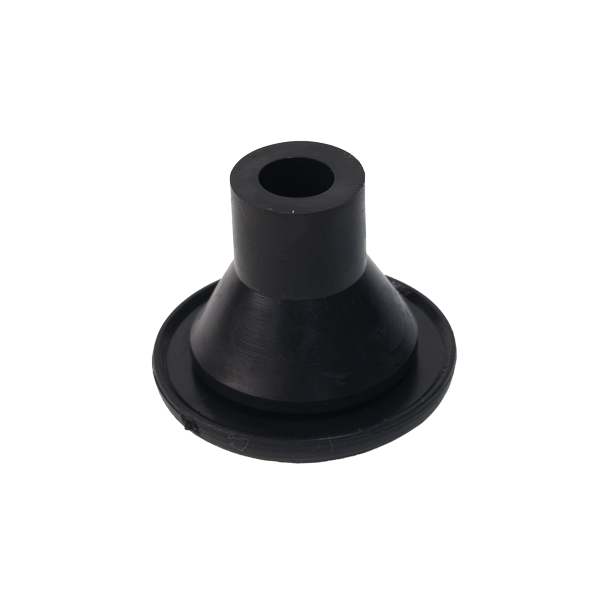

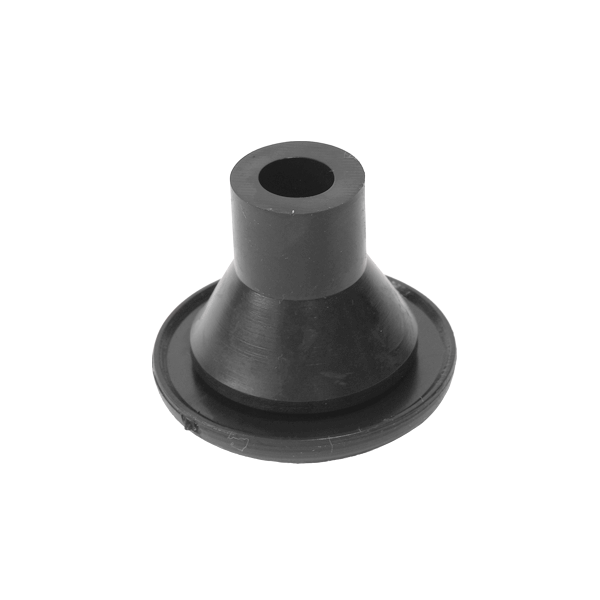

310 Series Specialty Terminal Insulator
Our specialty insulator line covers one-off and oddball insulators. We offer simple solutions for many unique situations, such as power connectors, odd battery types, and other unusual connections. Some of our specialty insulators are used in other assemblies, while some insulators are very specific to an industrial need.
$0.00
Product details
310 Series Specialty Terminal Insulator
Our specialty insulator line covers one-off and oddball insulators. We offer simple solutions for many unique situations, such as power connectors, odd battery types, and other unusual connections. Some of our specialty insulators are used in other assemblies, while some insulators are very specific to an industrial need.
- Grommet used to seal off cable entry holes
- Protect cables from sharp edges
- Fits hole diameter: 1" / 25.4mm
- Outer diameter: 1.54" / 39.1mm
- Maximum panel thickness: .060" / 1.5mm
- Made from fire retardant PVC
| Part Number | Entry Size | Cable Entry | Color |
|---|---|---|---|
| 310N4V02 | 0.25" | 18 - 12 AWG | Red |
| 310N4V13 | 0.25" | 18 - 12 AWG | Gray |
| 310N4V14 | 0.25" | 18 - 12 AWG | Black |
| 310N6V02 | 0.28" | 12 - 10 AWG | Red |
| 310N6V13 | 0.28" | 12 - 10 AWG | Gray |
| 310N6V14 | 0.28" | 12 - 10 AWG | Black |
| 310N7V02 | 0.38" | 8 - 6 AWG | Red |
| 310N7V13 | 0.38" | 8 - 6 AWG | Gray |
| 310N7V14 | 0.38" | 8 - 6 AWG | Black |
| 310N8V02 | 0.4" | 4 - 2 AWG | Red |
| 310N8V13 | 0.4" | 4 - 2 AWG | Gray |
| 310N8V14 | 0.4" | 4 - 2 AWG | Black |
| 310N9V02 | 0.5" | 2 - 1/0 AWG | Red |
| 310N9V13 | 0.5" | 2 - 1/0 AWG | Gray |
| 310N9V14 | 0.5" | 2 - 1/0 AWG | Black |
