600 Series Lug & Ring Terminal Insulator
VTE’s Lug & Ring insulators offer a wider variety of lug and ring protection. Our lug and ring insulators offer solutions to more specific applications than the 200 Series insulator line. These insulators are availabe in several different sizes, shapes, materials and colors, providing specific solutions to your exact needs.
$0.00
Product details
600 Series Lug & Ring Terminal Insulator
VTE’s Lug & Ring insulators offer a wider variety of lug and ring protection. Our lug and ring insulators offer solutions to more specific applications than the 200 Series insulator line. These insulators are availabe in several different sizes, shapes, materials and colors, providing specific solutions to your exact needs.
- Protect terminal connections from accidental shorts
- Use to comply with ABYC E-9, USCG 33 Subpart I, and ISO 10133
- Retainer lip on inside of insulator to retain insulator to terminal
- Various cable entry options, to provide multiple cable possibilities
- Attractive appearance adding to the value of the equipment on which the insulators are fitted
| Model | Cable Entry | Entry Size | Color | |
|---|---|---|---|---|
| 600N1V02 |  |
Single | 8 - 2 AWG (0.31") | Red |

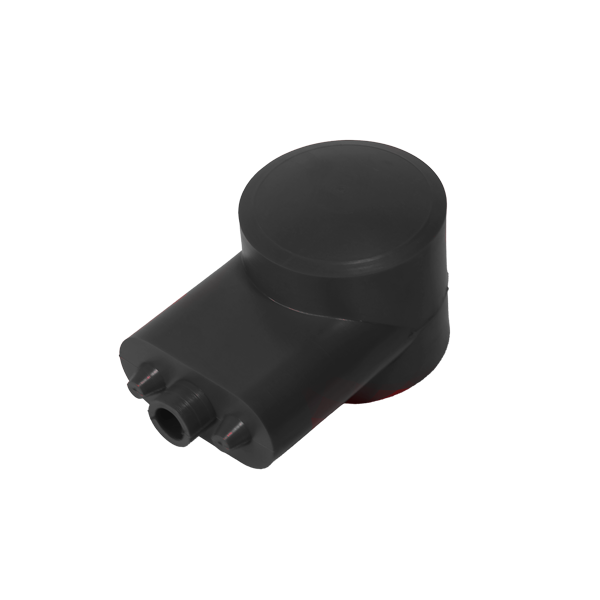

| 600N1V14 | Single | 8 - 2 AWG (0.31") | Black | |
|
|
||||

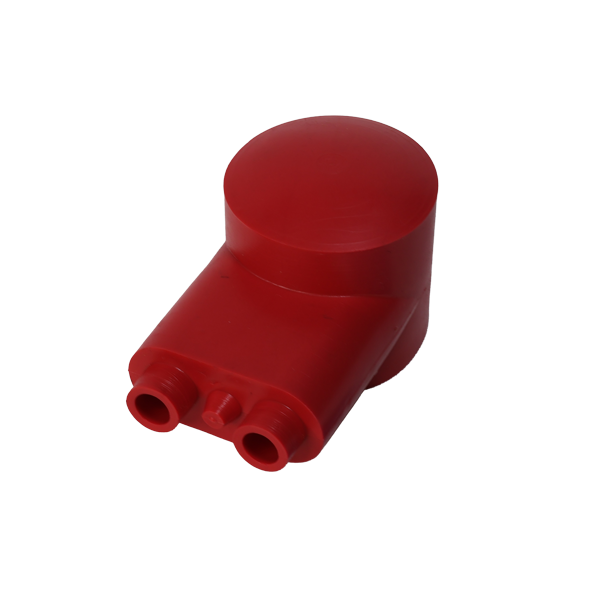

| 600N2V02 |  |
Dual | 8 - 2 AWG (0.31") | Red |

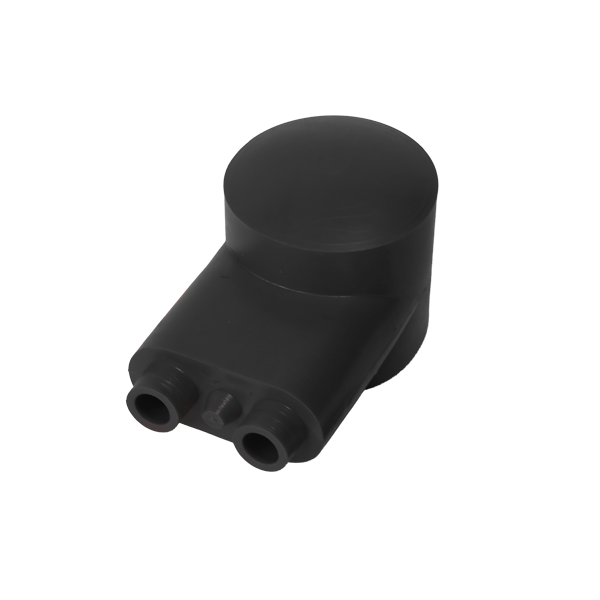

| 600N2V14 | Dual | 8 - 2 AWG (0.31") | Black | |
|
|
||||

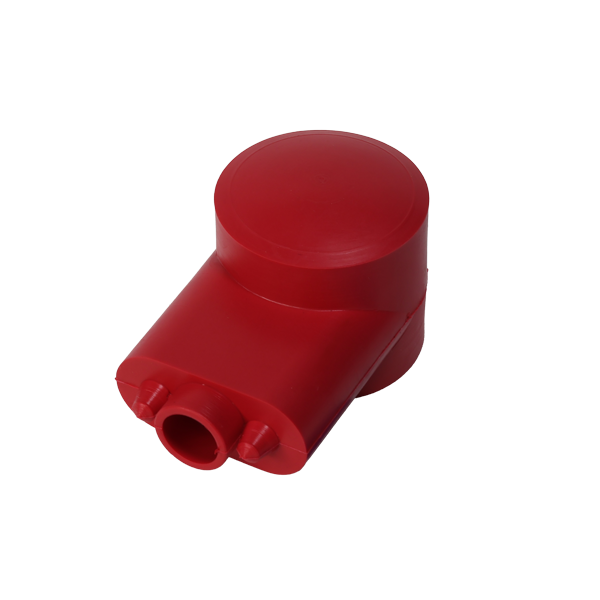

| 600N3V02 |  |
Single | 1 AWG (0.5") | Red |

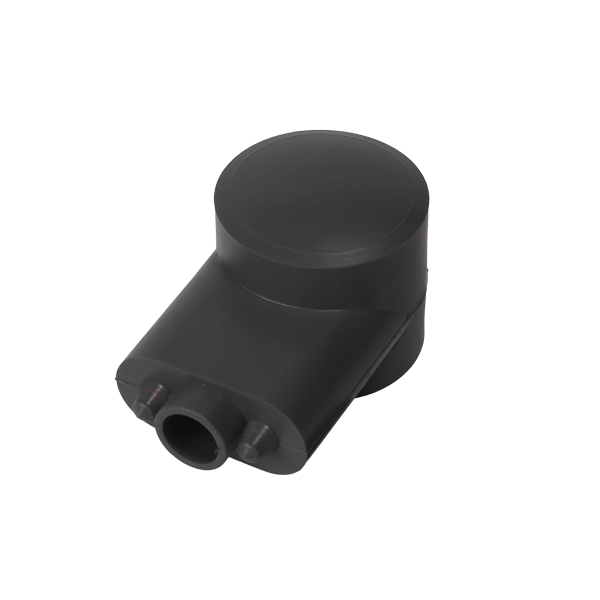

| 600N3V14 | Single | 1 AWG (0.5") | Black | |
|
|
||||

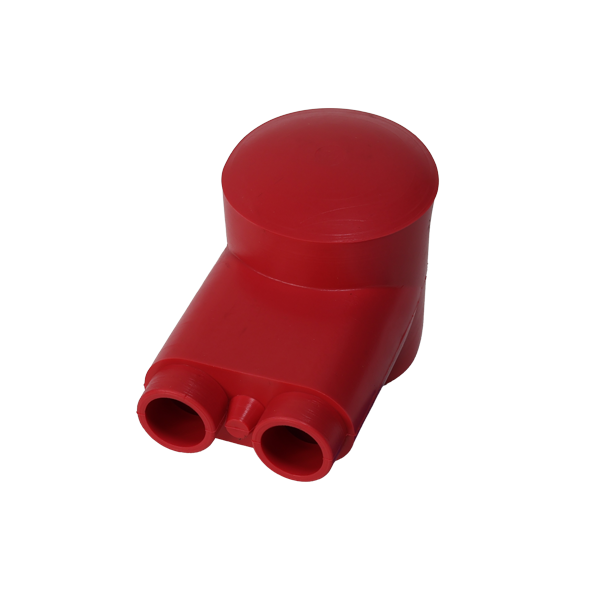

| 600N4V02 |  |
Dual | 1 AWG (0.5") | Red |

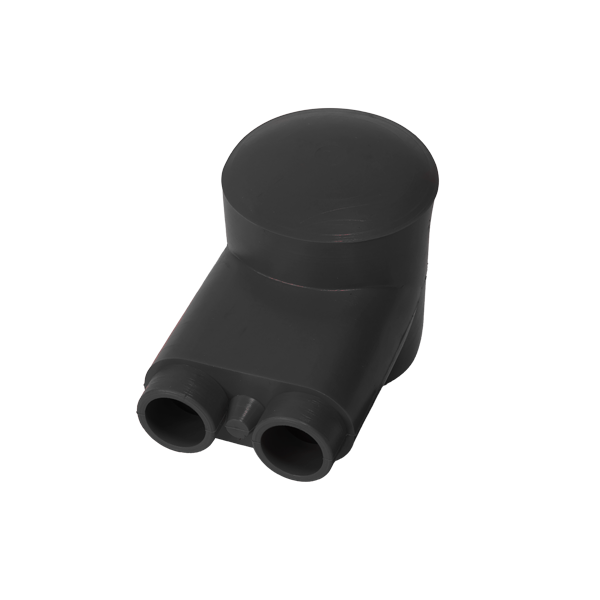

| 600N4V14 | Dual | 1 AWG (0.5") | Black | |
|
|
||||

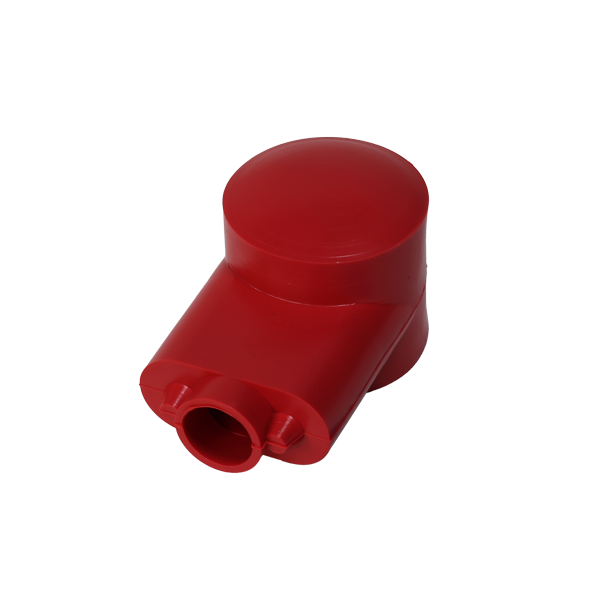

| 600N5V02 |  |
Single | 2/0 AWG (0.62") | Red |

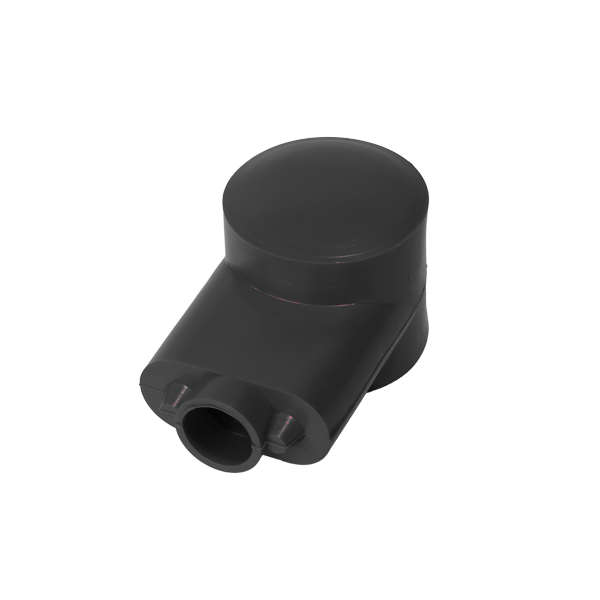

| 600N5V14 | Single | 2/0 AWG (0.62") | Black | |
|
|
||||

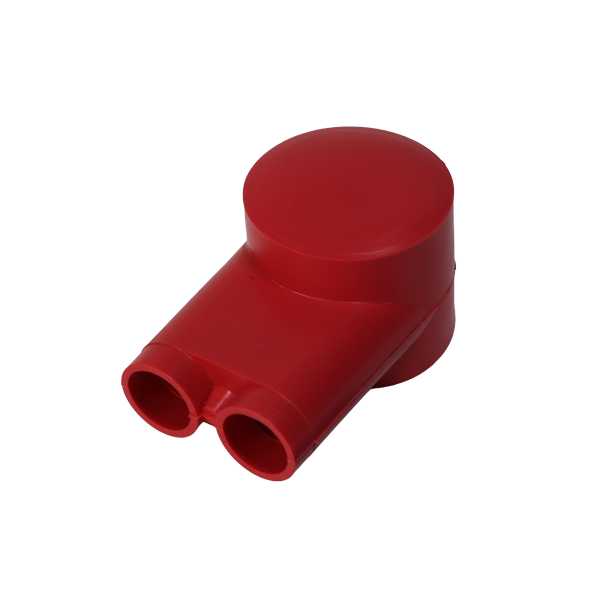

| 600N6V02 |  |
Dual | 2/0 AWG (0.62") | Red |

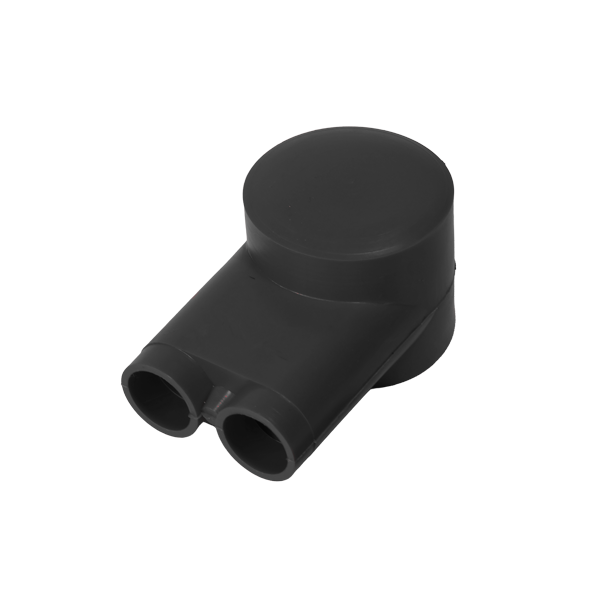

| 600N6V14 | Dual | 2/0 AWG (0.62") | Black | |
|
|
||||

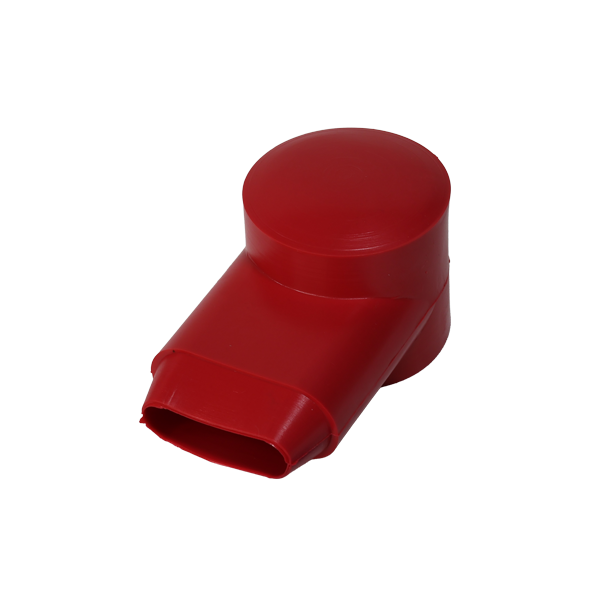

| 600N7V02 |  |
Oval | 3/0 AWG + | Red |

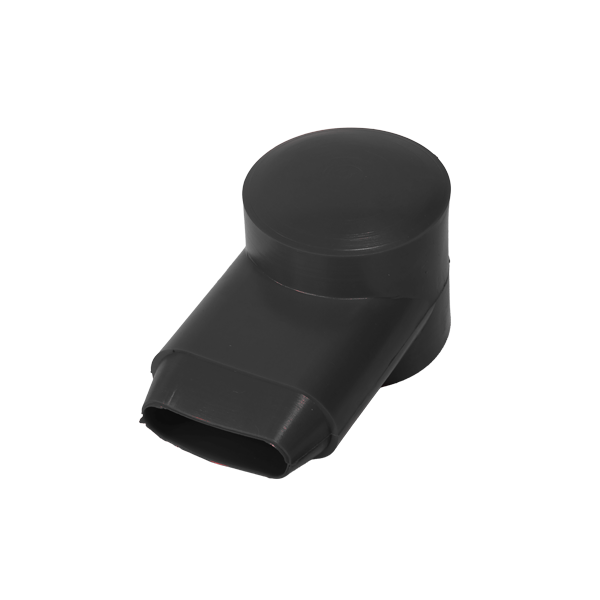

| 600N7V14 | Oval | 3/0 AWG + | Black | |
