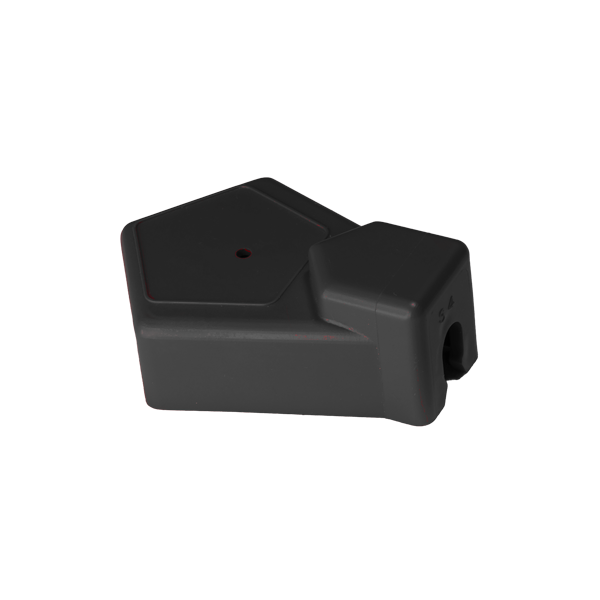

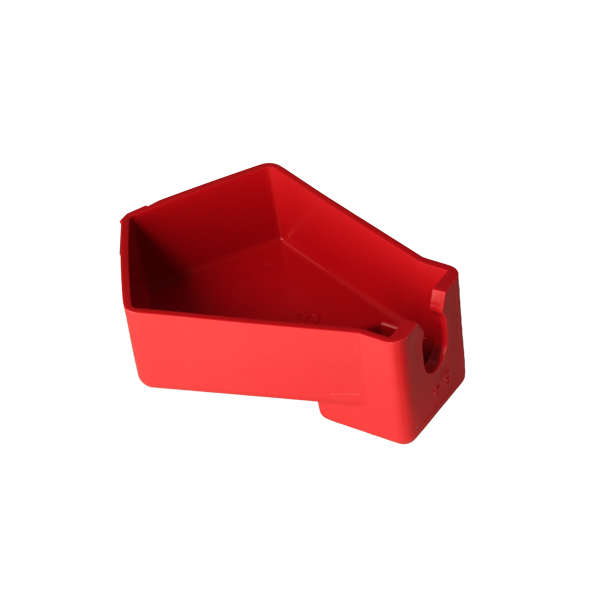

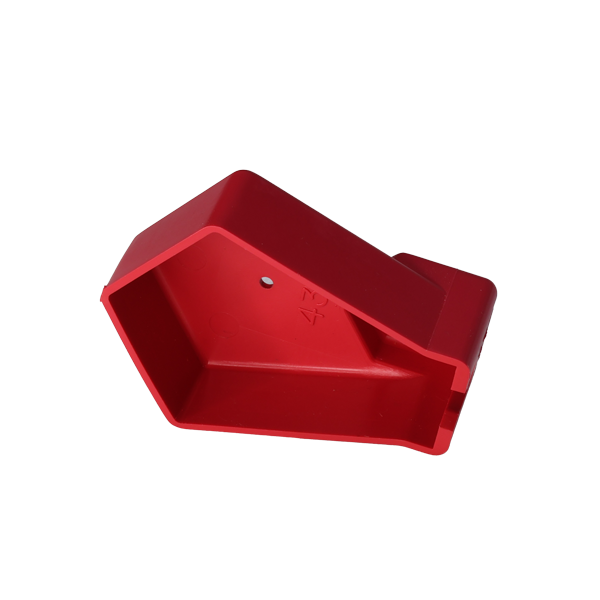

436 Series L-Post Terminal Insulator
Our L-Post terminal insulators work on several versions of the L-Post or Flag type battery terminal. Several insulator types offer protection in various sizes, and have various entry types, for various applications. The L-Post insulators are available in several materials and colors.
$0.00
Product details
436 Series L-Post Terminal Insulator
Our L-Post terminal insulators work on several versions of the L-Post or Flag type battery terminal. Several insulator types offer protection in various sizes, and have various entry types, for various applications. The L-Post insulators are available in several materials and colors.
- Protect terminal connections from accidental shorts
- Use to comply with ABYC E-9, USCG 33 Subpart I, and ISO 10133
- Attractive appearance adding to the value of the equipment on which the insulators are fitted
- Available with or without shroud
- Various cable entry options, to provide multiple cable possibilities
- Securing tab allows insulator to be zip-tied to cable
- Various color options, giving the customer the end product THEY want
| Part Number | Entry Size | Cable Entry | Color |
|---|---|---|---|
| 436N4V02 (shroud) | 0.36" | 4 AWG | Red |
| 436N4V14 (shroud) | 0.36" | 4 AWG | Black |
| 436N5V02 (shroud) | 0.48" | 2 AWG | Red |
| 436N5V14 (shroud) | 0.48" | 2 AWG | Black |
| 436N7V02 (shroud) | 0.64" | 1/0 AWG | Red |
| 436N7V14 (shroud) | 0.64" | 1/0 AWG | Black |
| 436S4V02 (no shroud) | 0.36" | 4 AWG | Red |
| 436S4V14 (no shroud) | 0.36" | 4 AWG | Black |
| 436S5V02 (no shroud) | 0.48" | 2 AWG | Red |
| 436S5V14 (no shroud) | 0.48" | 2 AWG | Black |
