690 Series Lug & Ring Terminal Insulator
VTE’s Lug & Ring insulators offer a wider variety of lug and ring protection. Our lug and ring insulators offer solutions to more specific applications than the 200 Series insulator line. These insulators are availabe in several different sizes, shapes, materials and colors, providing specific solutions to your exact needs.
$0.00
Product details
690 Series Lug & Ring Terminal Insulator
VTE’s Lug & Ring insulators offer a wider variety of lug and ring protection. Our lug and ring insulators offer solutions to more specific applications than the 200 Series insulator line. These insulators are availabe in several different sizes, shapes, materials and colors, providing specific solutions to your exact needs.
- Protect medium duty, right angle terminals in tight or confined spaces
- Available to fit 8 ga up to 4/0 ga terminals
- Metric: Fits 8mm2 to 103mm2 terminals
- Flexible cable entry
- Available in Red and Black
| Model | Cable Opening | Terminal Width | Terminal Length | Rated Size | Color | |
|---|---|---|---|---|---|---|
| 691N9V02 |  |
0.31" | 0.78" | 1.13" | 8 - 4 AWG | Red |

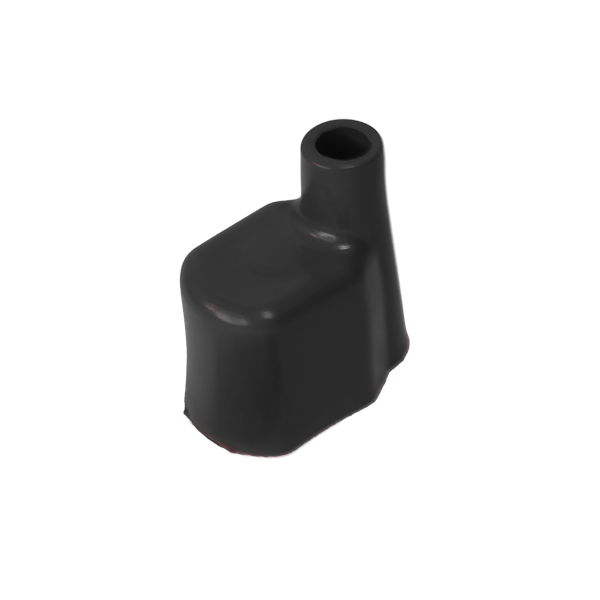

| 691N9V14 | 0.31" | 0.78" | 1.13" | 8 - 4 AWG | Black | |
|
|
||||||
| 692N9V02 |  |

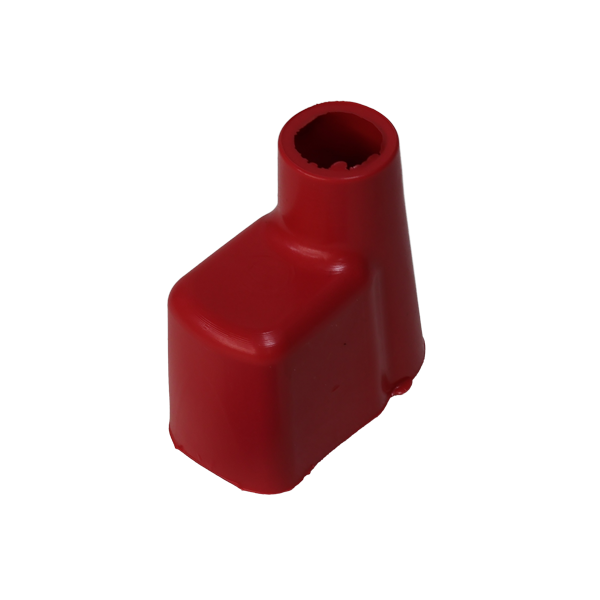

0.49" | 0.77" | 1.08" | 2 - 1 AWG | Red |

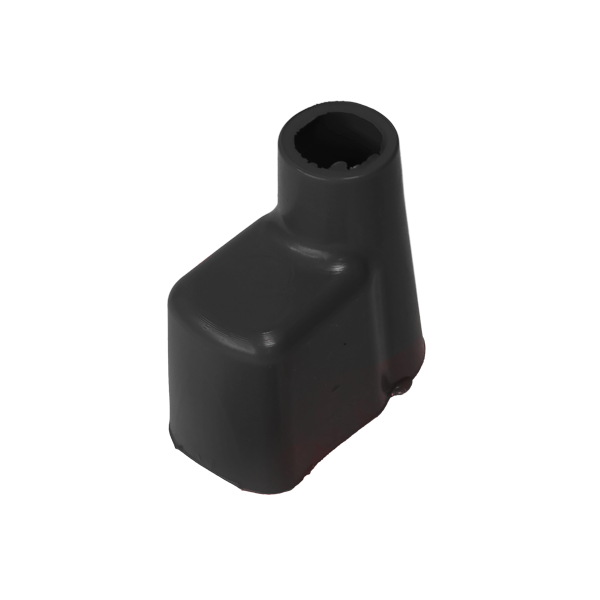

| 692N9V14 | 0.49" | 0.77" | 1.08" | 2 - 1 AWG | Black | |
|
|
||||||
| 693N9V02 |  |

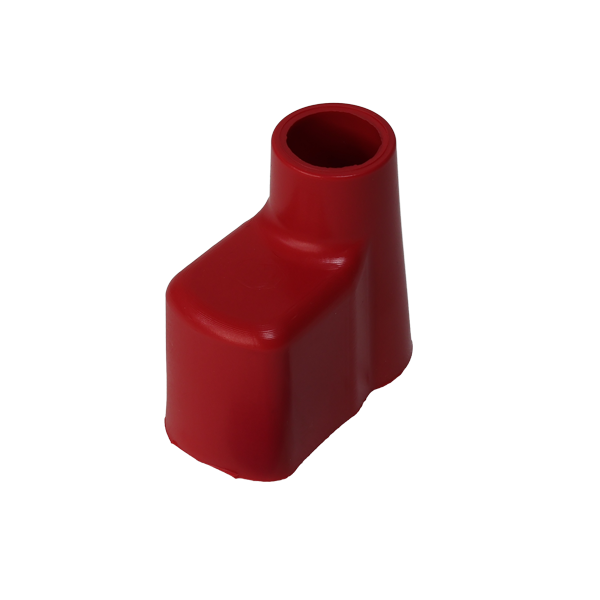

0.54" | 0.82" | 1.14" | 1/0 AWG | Red |

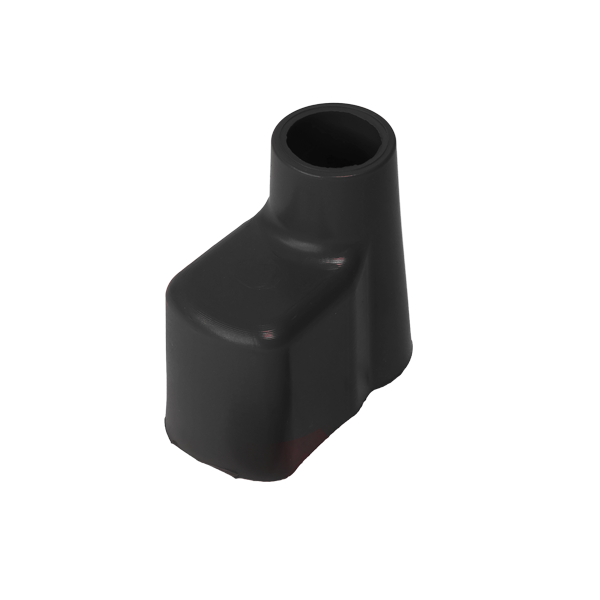

| 693N9V14 | 0.54" | 0.82" | 1.14" | 1/0 AWG | Black | |
|
|
||||||
| 694N9V02 |  |

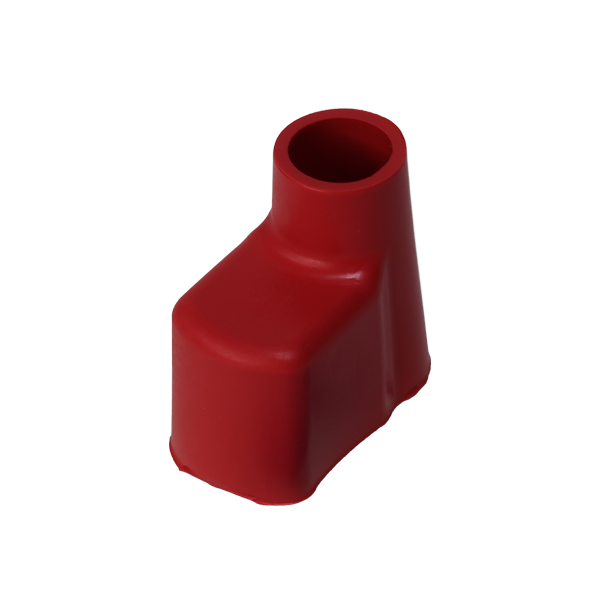

0.58" | 0.84" | 1.19" | 2/0 AWG | Red |

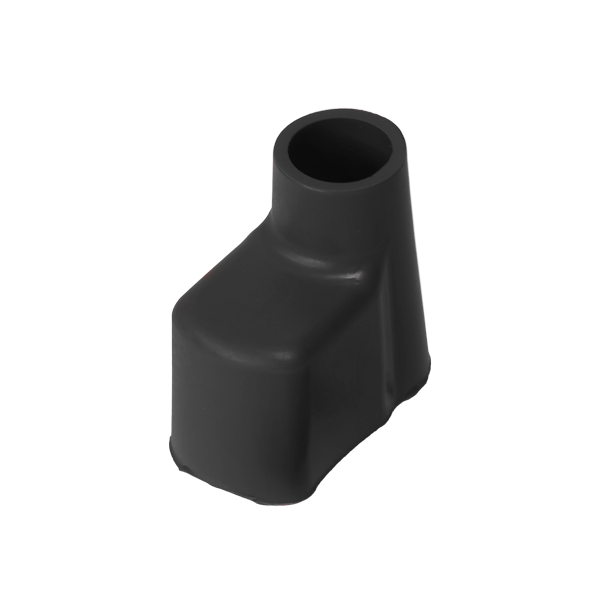

| 694N9V14 | 0.58" | 0.84" | 1.19" | 2/0 AWG | Black | |
|
|
||||||
| 695N9V02 |  |

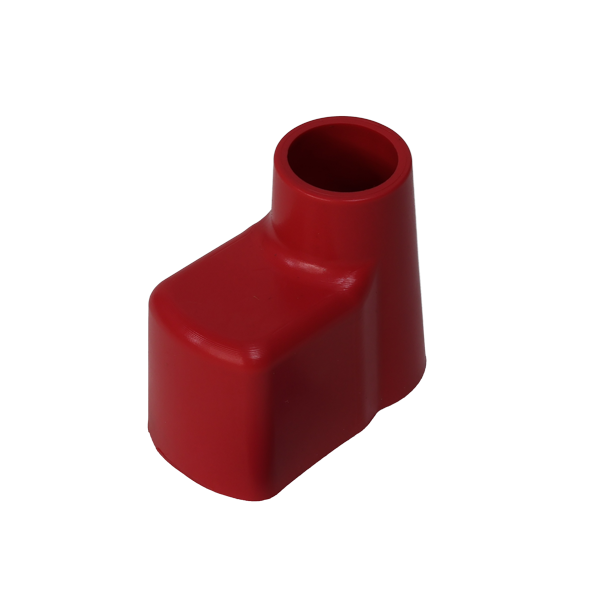

0.65" | 0.92" | 1.26" | 3/0 AWG | Red |

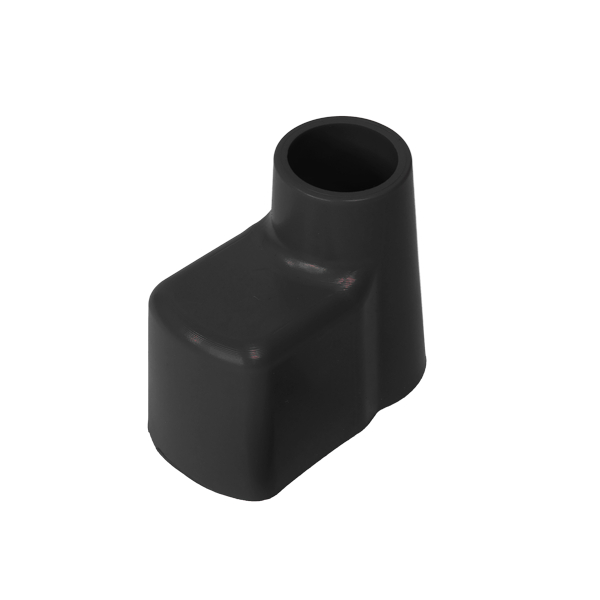

| 695N9V14 | 0.65" | 0.92" | 1.26" | 3/0 AWG | Black | |
|
|
||||||
| 696N9V02 |  |

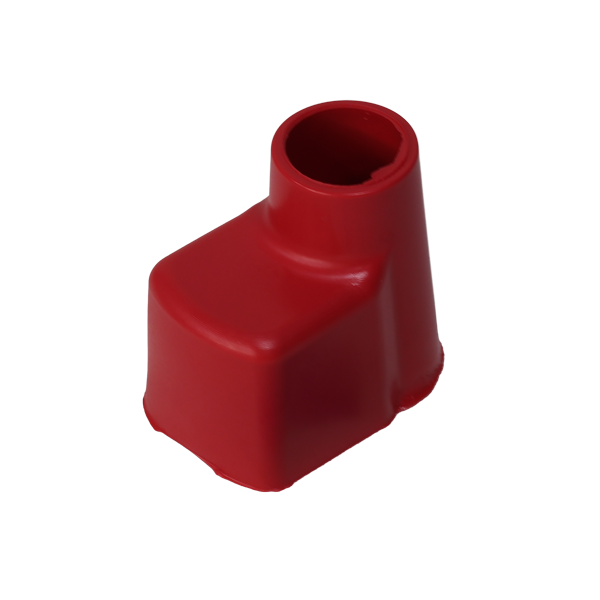

0.7" | 1.02" | 1.22" | 4/0 AWG | Red |

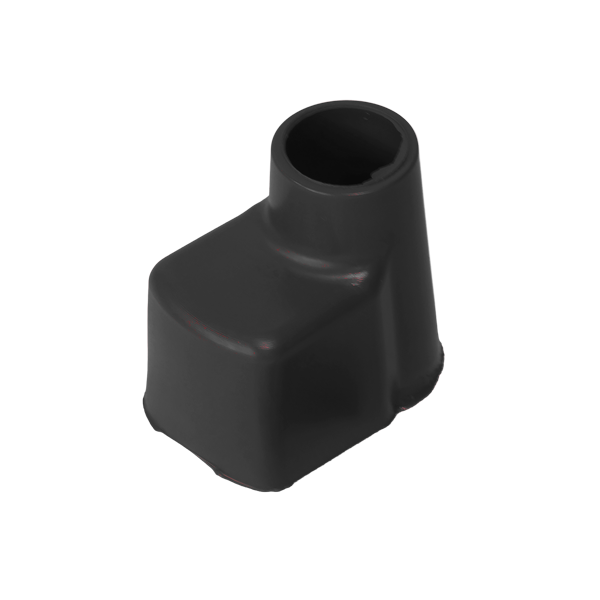

| 696N9V14 | 0.7" | 1.02" | 1.22" | 4/0 AWG | Black | |
