800 Series Lug & Ring Terminal Insulator
VTE’s Lug & Ring insulators offer a wider variety of lug and ring protection. Our lug and ring insulators offer solutions to more specific applications than the 200 Series insulator line. These insulators are availabe in several different sizes, shapes, materials and colors, providing specific solutions to your exact needs.
$0.00
Product details
800 Series Lug & Ring Terminal Insulator
VTE’s Lug & Ring insulators offer a wider variety of lug and ring protection. Our lug and ring insulators offer solutions to more specific applications than the 200 Series insulator line. These insulators are availabe in several different sizes, shapes, materials and colors, providing specific solutions to your exact needs.
- Protect terminal connections from accidental shorts
- Use to comply with ABYC E-9, USCG 33 Subpart I, and ISO 10133
- Retainer lip on inside of insulator to retain insulator to terminal
- Attractive appearance adding to the value of the equipment on which the insulators are fitted
- Several material options to allow this design to be used in high temperature environment
- Various color options, giving the customer the end product THEY want
| Part Number | Entry Size | Cable Entry | Color |
|---|---|---|---|
| 800N3V02 | 0.17" | 18 - 10 AWG | Red |
| 800N3V14 | 0.17" | 18 - 10 AWG | Black |
| The N3 model is almost identical to the N4, but runs on a more efficient machine, resulting is much lower cost compared to the N4 | |||
| 800N4V02 | 0.17" | 18 - 10 AWG | Red |
| 800N4V14 | 0.17" | 18 - 10 AWG | Black |
| 800N5V02 | 0.21" | 8 AWG | Red |
| 800N5V14 | 0.21" | 8 AWG | Black |

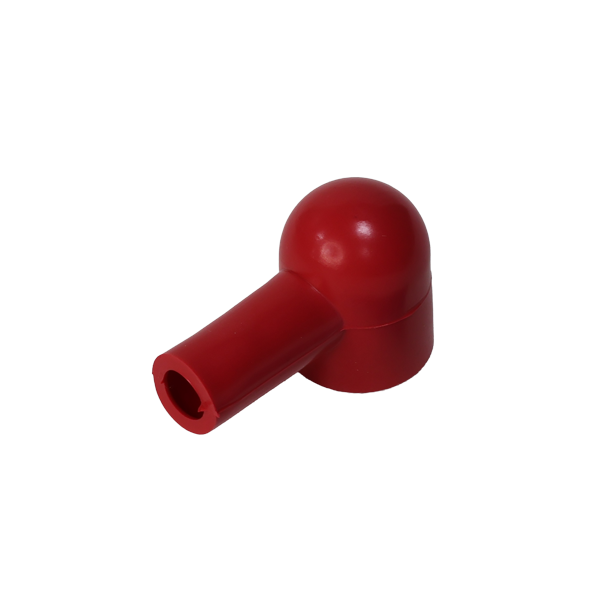

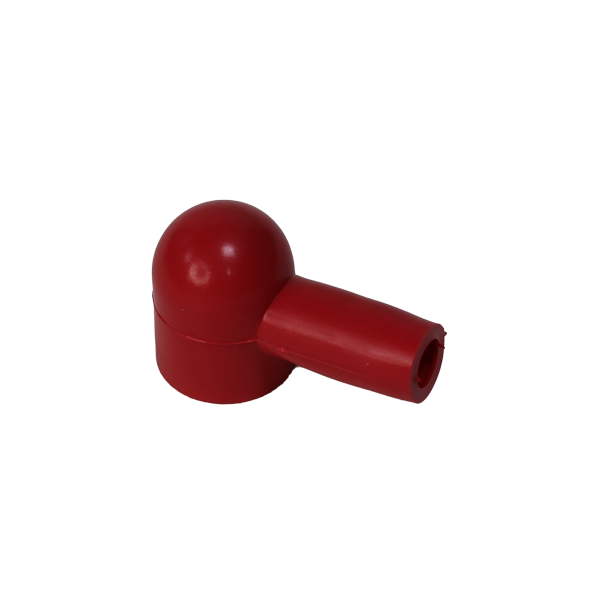

| 800N8V02 | 0.31" | 6 AWG | Red |

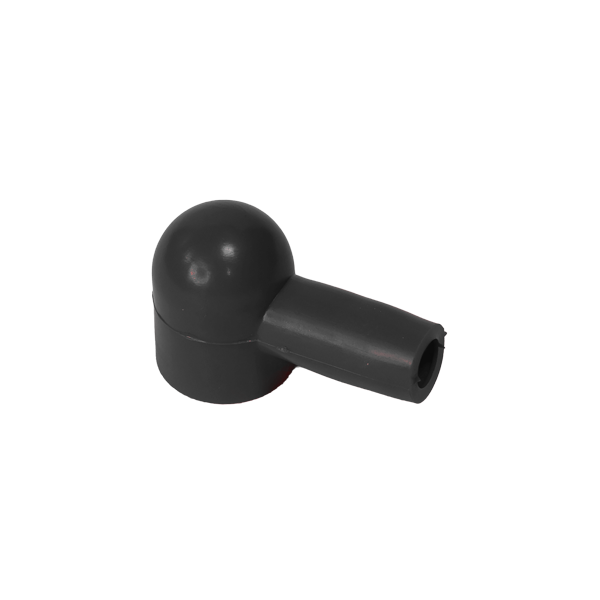

| 800N8V14 | 0.31" | 6 AWG | Black |
| 800N9V02 | 0.5" | 4 - 1 AWG | Red |
| 800N9V14 | 0.5" | 4 - 1 AWG | Black |
