730 Series Swivel Top Battery Terminal Insulator
VTE’s 730 series terminal insulators allow terminal connections at different angles. The swiveling top allows for various directions, and 7 cable entries are available.
$0.00
Product details
730 Series Swivel Top Battery Terminal Insulator
Battery terminal insulators work on a large range of battery terminals. We offer 19 unique solutions to battery terminal insulation. VTE offers solutions in single and multiple cables, as well as various sizes of cabling, materials, and colors.
- Protect terminal connections from accidental shorts
- Use to comply with ABYC E-9, USCG 33 Subpart I, and ISO 10133
- Various cable entry options, to provide multiple cable possibilities
- Attractive appearance adding to the value of the equipment on which the insulators are fitted
- Several material options to allow this design to be used in high temperature environment
- Available in Red or Black
| Model | Top | Cable Entry | Entry Size | Base | Color | |
|---|---|---|---|---|---|---|

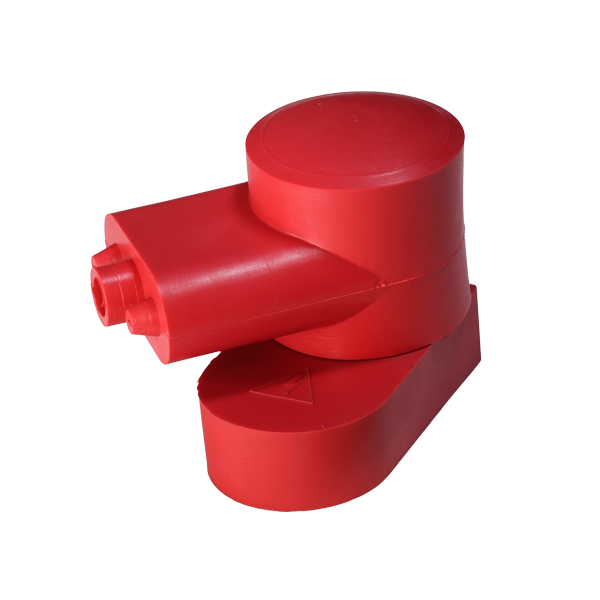

| 731N1V02 | 600N1V02 |  |
Single | 8 - 2 AWG (0.31") | 632NPV02 | Red |
| 730N1V14 | 600N1V14 | Single | 8 - 2 AWG (0.31") | 632NNV14 | Black | |
| 732N1V02 | 600N1V02 | Single | 8 - 2 AWG (0.31") | 632N0V02 | Red | |
| 732N1V14 | 600N1V14 | Single | 8 - 2 AWG (0.31") | 632N0V14 | Black | |
|
|
||||||

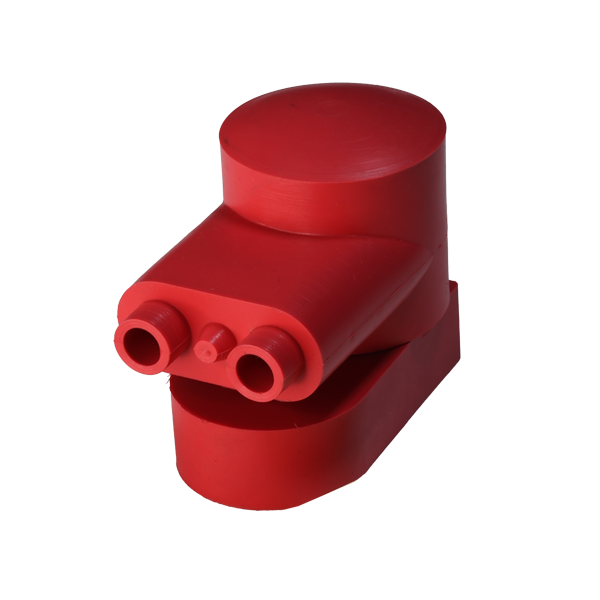

| 731N2V02 | 600N2V02 |  |
Dual | 8 - 2 AWG (0.31") | 632NPV02 | Red |
| 730N2V14 | 600N2V14 | Dual | 8 - 2 AWG (0.31") | 632NNV14 | Black | |
| 732N2V02 | 600N2V02 | Dual | 8 - 2 AWG (0.31") | 632N0V02 | Red | |
| 732N2V14 | 600N2V14 | Dual | 8 - 2 AWG (0.31") | 632N0V14 | Black | |
|
|
||||||

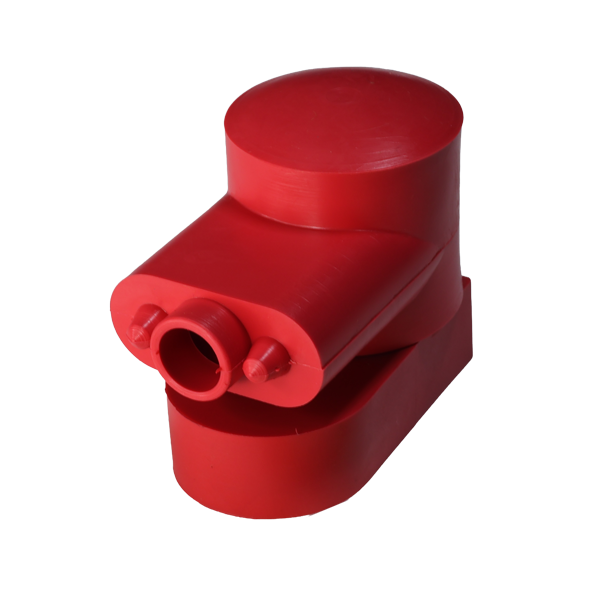

| 731N3V02 | 600N3V02 |  |
Single | 1 AWG (0.5") | 632NPV02 | Red |
| 730N3V14 | 600N3V14 | Single | 1 AWG (0.5") | 632NNV14 | Black | |
| 732N3V02 | 600N3V02 | Single | 1 AWG (0.5") | 632N0V02 | Red | |
| 732N3V14 | 600N3V14 | Single | 1 AWG (0.5") | 632N0V14 | Black | |
|
|
||||||

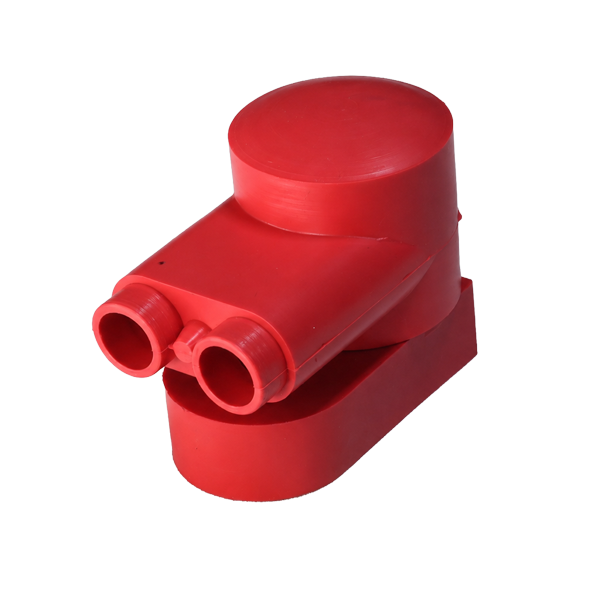

| 731N4V02 | 600N4V02 |  |
Dual | 1 AWG (0.5") | 632NPV02 | Red |
| 730N4V14 | 600N4V14 | Dual | 1 AWG (0.5") | 632NNV14 | Black | |
| 732N4V02 | 600N4V02 | Dual | 1 AWG (0.5") | 632N0V02 | Red | |
| 732N4V14 | 600N4V14 | Dual | 1 AWG (0.5") | 632N0V14 | Black | |
|
|
||||||

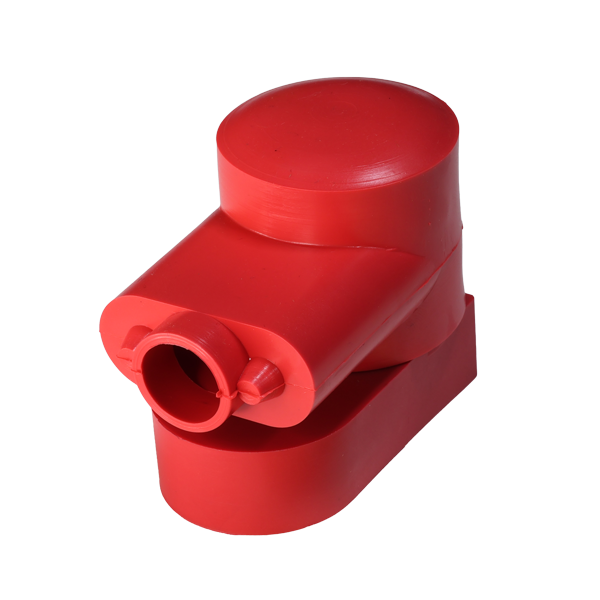

| 731N5V02 | 600N5V02 |  |
Single | 2/0 AWG (0.62") | 632NPV02 | Red |
| 730N5V14 | 600N5V14 | Single | 2/0 AWG (0.62") | 632NNV14 | Black | |
| 732N5V02 | 600N5V02 | Single | 2/0 AWG (0.62") | 632N0V02 | Red | |
| 732N5V14 | 600N5V14 | Single | 2/0 AWG (0.62") | 632N0V14 | Black | |
|
|
||||||

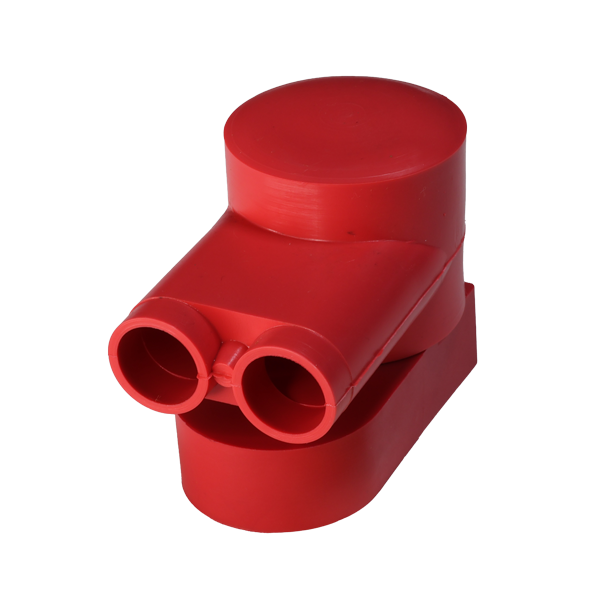

| 731N6V02 | 600N6V02 |  |
Dual | 2/0 AWG (0.62") | 632NPV02 | Red |
| 730N6V14 | 600N6V14 | Dual | 2/0 AWG (0.62") | 632NNV14 | Black | |
| 732N6V02 | 600N6V02 | Dual | 2/0 AWG (0.62") | 632N0V02 | Red | |
| 732N6V14 | 600N6V14 | Dual | 2/0 AWG (0.62") | 632N0V14 | Black | |
|
|
||||||

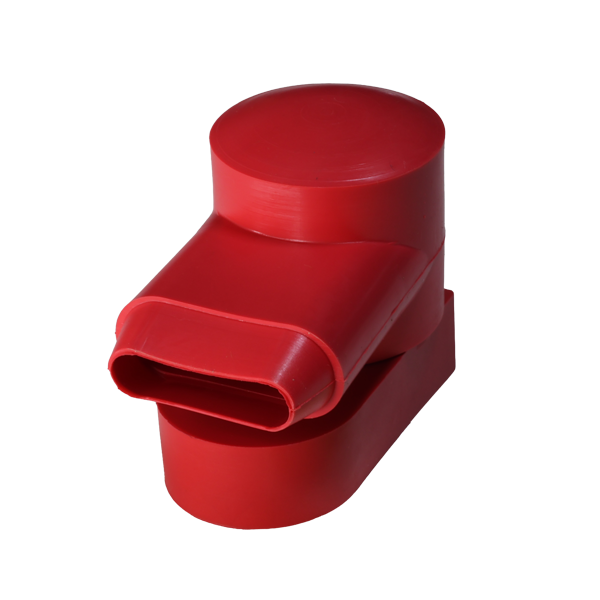

| 731N7V02 | 600N7V02 |  |
Oval | 4/0 AWG | 632NPV02 | Red |
| 730N7V14 | 600N7V14 | Oval | 4/0 AWG | 632NNV14 | Black | |
| 732N7V02 | 600N7V02 | Oval | 4/0 AWG | 632N0V02 | Red | |
| 732N7V14 | 600N7V14 | Oval | 4/0 AWG | 632N0V14 | Black | |

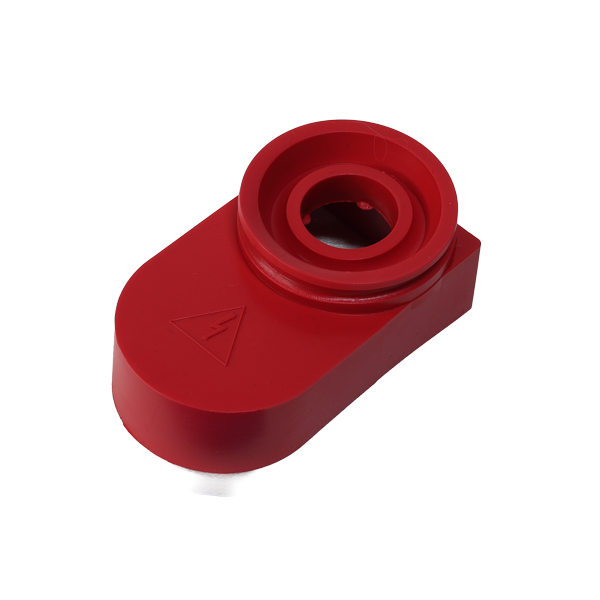

 632NPV02 Positive Base |

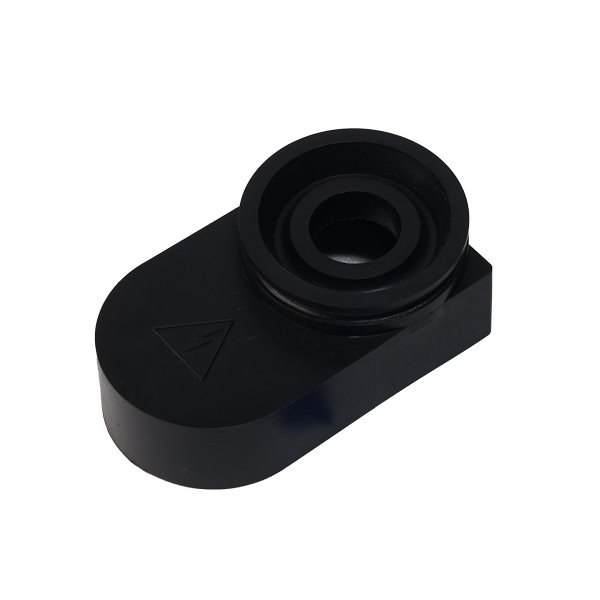

 632NNV14 Negative Base |

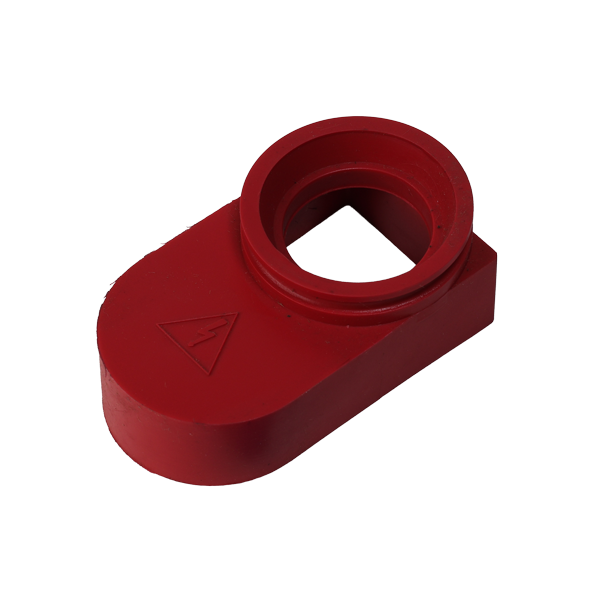

 632N0V02 Universal Base |
 632N0V14 Universal Base |
