553 Series Battery Terminal Insulator

SKU: N/A

Battery terminal insulators work on a large range of battery terminals. We offer 19 unique solutions to battery terminal insulation. VTE offers solutions in single and multiple cables, as well as various sizes of cabling, materials, and colors.

$0.00

Product details

553 Series Battery Terminal Insulator

Battery terminal insulators work on a large range of battery terminals. We offer 19 unique solutions to battery terminal insulation. VTE offers solutions in single and multiple cables, as well as various sizes of cabling, materials, and colors.

  • Protect terminal connections from accidental shorts
  • The 553 is designed to cover a side battery post
  • Use to comply with ABYC E-9, USCG 33 Subpart I, and ISO 10133
  • Two cable entry options, to provide multiple cable possibilities
  • Attractive appearance adding to the value of the equipment on which the insulators are fitted
  • Several material options to allow this design to be used in high temperature environment
  • Various color options, giving the customer the end product THEY want
Part Number Cable Size Cable Entry Color

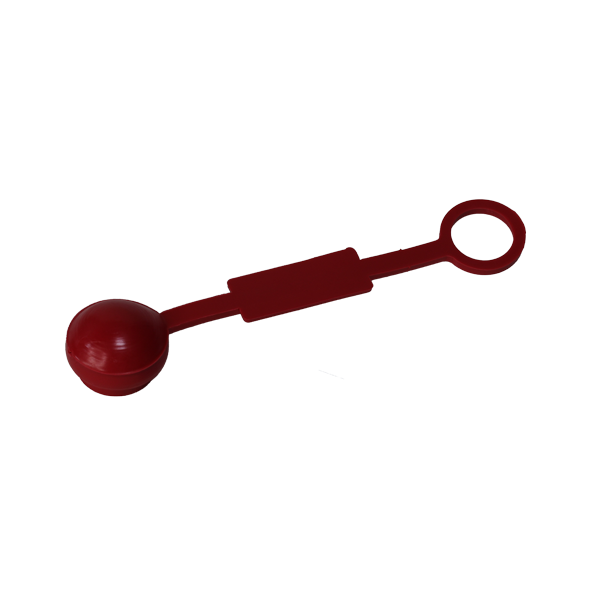

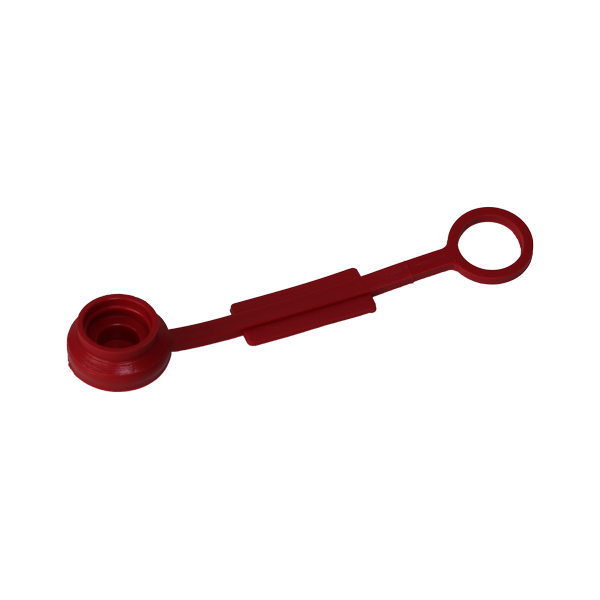

553X6V02 0.59" 2/0 AWG Red

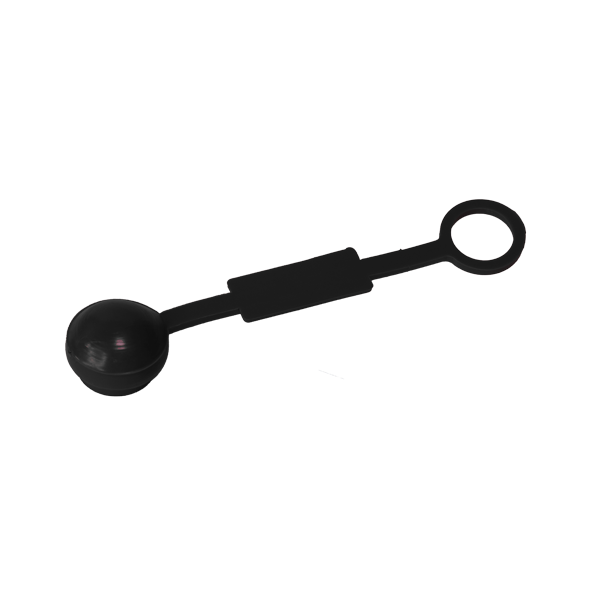

553X6V14 0.59" 2/0 AWG Black
553X9V02 0.9" 4/0 AWG + Red
553X9V14 0.9" 4/0 AWG + Black
