900 Series Battery Terminal Insulator

SKU: N/A

Battery terminal insulators work on a large range of battery terminals. We offer 19 unique solutions to battery terminal insulation. VTE offers solutions in single and multiple cables, as well as various sizes of cabling, materials, and colors.

$0.00

Product details

900 Series Battery Terminal Insulator

Battery terminal insulators work on a large range of battery terminals. We offer 19 unique solutions to battery terminal insulation. VTE offers solutions in single and multiple cables, as well as various sizes of cabling, materials, and colors.

  • Protect terminal connections from accidental shorts
  • Use to comply with ABYC E-9, USCG 33 Subpart I, and ISO 10133
  • Various cable entry options, to provide multiple cable possibilities
  • Attractive appearance adding to the value of the equipment on which the insulators are fitted
  • Several material options to allow this design to be used in high temperature environment
  • Various color options, giving the customer the end product THEY want
Part Number Entry Side Cable Entry Entry Size Color

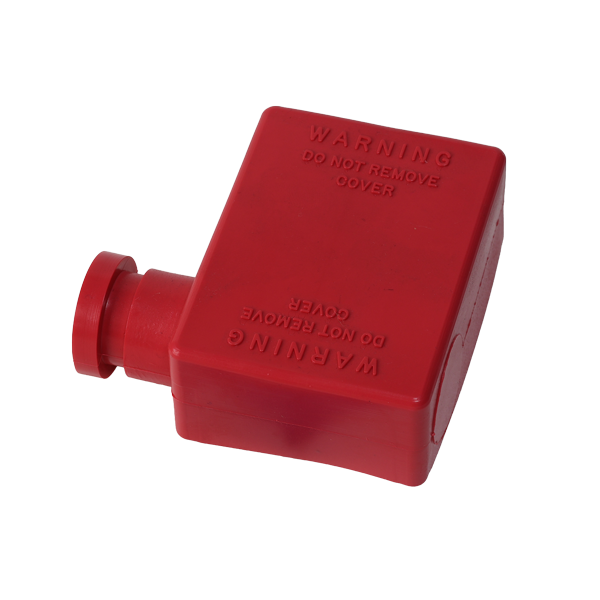

900L9V02 Left 0.63" 3/0 AWG Red

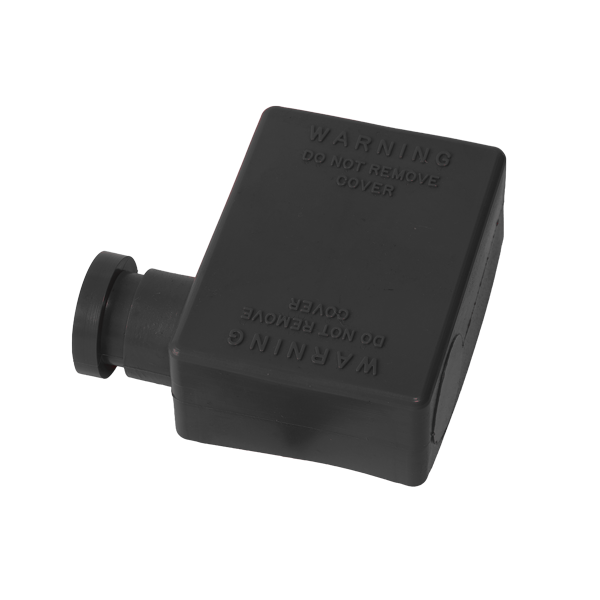

900L9V14 Left 0.63" 3/0 AWG Black

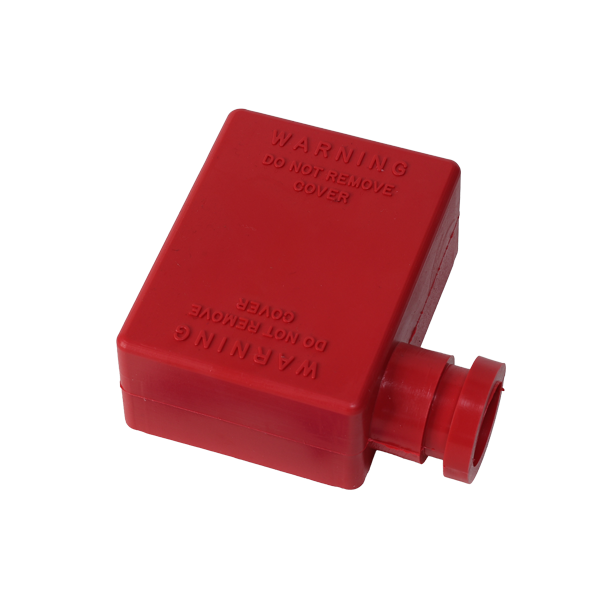

900R9V02 Right 0.63" 3/0 AWG Red

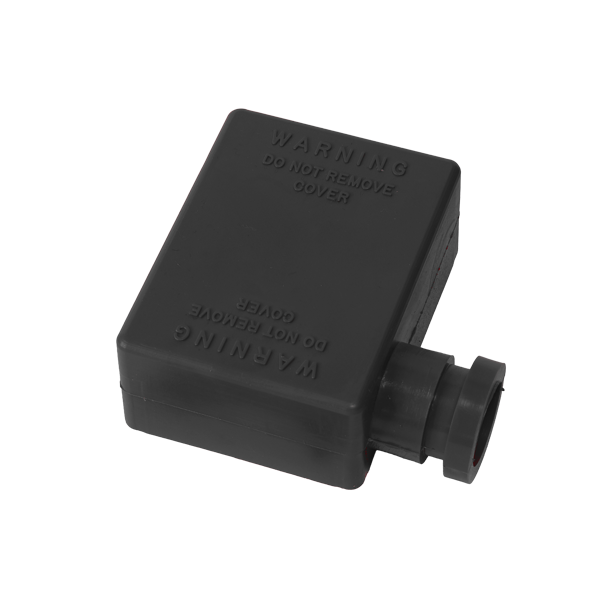

900R9V14 Right 0.63" 3/0 AWG Black

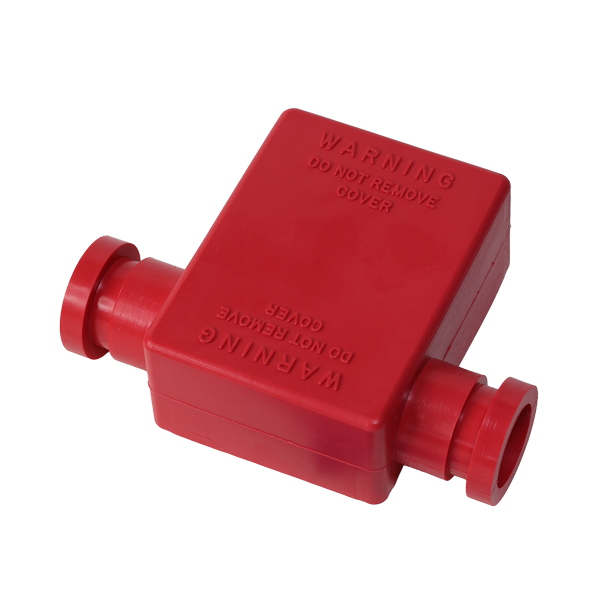

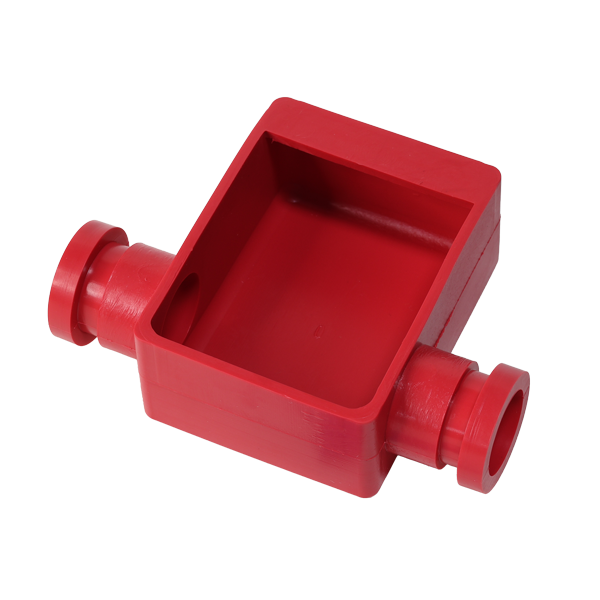

900D9V02 Dual 0.63" 3/0 AWG Red

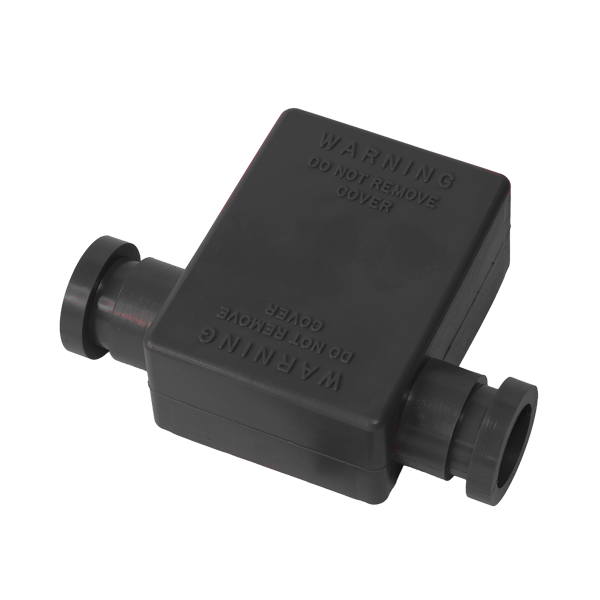

900D9V14 Dual 0.63" 3/0 AWG Black
