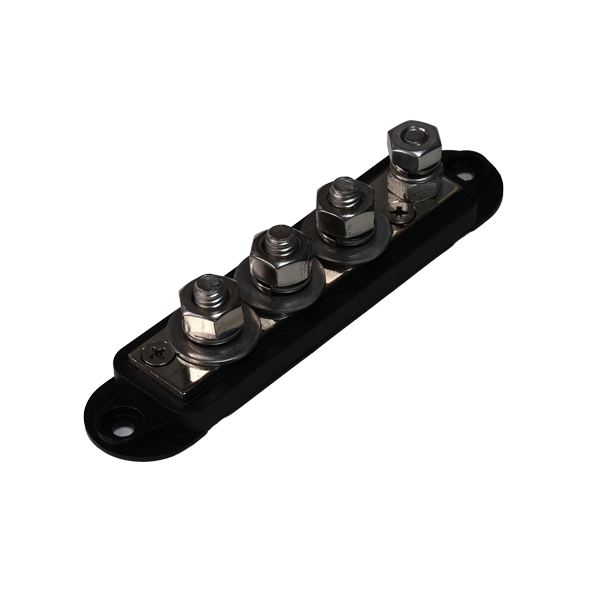

4 Point Terminal Busbar
FSI presents our 4 Point Terminal Busbars. These systems allow for multiple connections to positive and negative systems. Each connection post can maintain multiple connections, making them flexible and robust.
| RECOMMENDED: | Positive Connections: 3/8″ Negative Connection: 5/16″ |
$0.00
Product details
4 Point Terminal Busbar
Our original 4 point connection busbar, this busbar connects multiple supply lines to a single source cable. A low cost solution to many current distribution applications. Can be used with a protective cover to protect against accidental shorts.
- Multiple connection points, to accomodate multiple power connections
- Secure way to consolidate ground systems
- Max Amperage: 210 amps @ 12 vdc
- Max Voltage: 48 vdc
- 1/4" stainless steel terminal post
- 3/8" or 5/16" stainless steel connection posts
- Stainless steel hex nuts and washers
- Base Material: 16% Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 4.66"

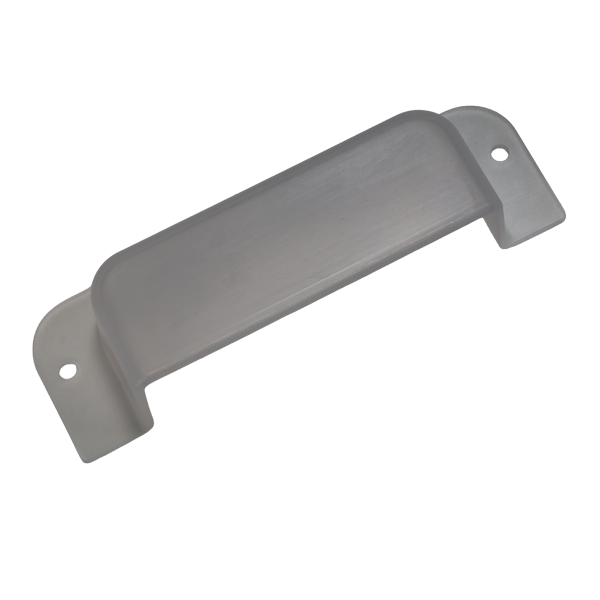

- Optional cover not included
