Class T (JJN) Fuse Holder
Secure your Class T fuses with VTE’s Class T Fuse Holder.
$0.00
Product details
Class T (JJN) Fuse Holder
With the VTE Class T fuse holder, your cable connections can be secure and protected when used with our protective cover.
- Cost effective solutions for securing Class T fuses and cabling
- Fuse holder will accomodate 225a to 400a fuses
- Class T Fuse Holder Max Amperage: 400 amps @ 12 vdc
- Holder Voltage Rating: 48vdc
- Class T Fuse Kit includes fuse holder, washers, bolts. Optional cover sold seperately
- Class T Fuses sold seperately
- 3/8" (approx: 10mm) stud accepts lug / ring terminals up to 4/0 AWG (103mm2)
- Base Material : Red or black glass-filled nylon
- Optional insulating cover: 751N8P00 protects conductive areas from accidental shorts, complying with ABYC / USCG requirements
- Connection Bolt Material : Stainless Steel
| Part Number | Description | Color |
|---|---|---|
| TFB735N0N02 | Class T Fuse Holder Kit | Red |

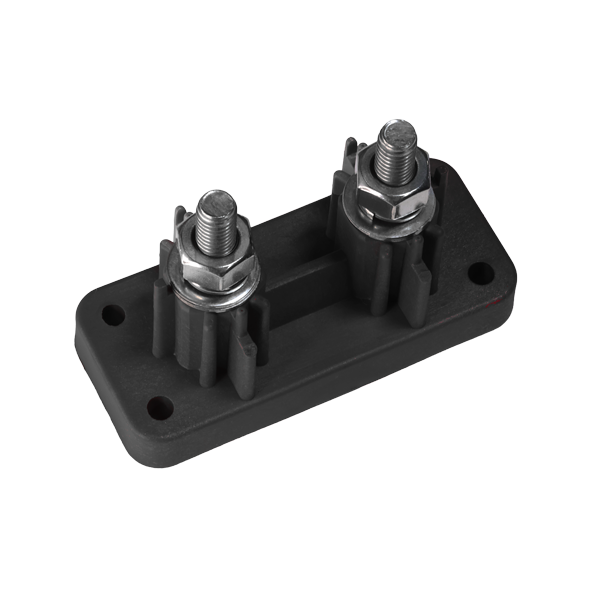

| TFB735N0N14 | Class T Fuse Holder Kit | Black |
|
|
||
| TFB735N8N02 | Class T Fuse Holder Kit w/ Cover | Red |
| TFB735N8N14 | Class T Fuse Holder Kit w/ Cover | Black |
|
|
||
| 751N8P00 | Cover | Clear |
| Series Name | ANB740 | ANB753 | MFB736 | TFB735 |
|---|---|---|---|---|
| Max Fuse Rating @ 12vdc | 300a | 750a | 250a | 400a |
| Max DC Volts | 48 | 48 | 48 | 48 |
| Max AC Volts | Not Rated | Not Rated | Not Rated | Not Rated |
| Continuous Duty Amperage | 198a | 495a | 165a | 264a |
| Max Amperage 1 Minute | 330a | 825a | 275a | 440a |
