Heavy Duty Single Point Power Posts
Connect and consolidate positive and negative power lines. Extend power lines to different locations, or split lines into several locations. Can be mounted in any orientation, and stainless hardware resists corrosion.
$0.00
Product details
Heavy Duty Single Point Power Posts
For stronger and larger cable connections, we offer a heavy duty power post. Our heavy duty power posts are available in 10mm, 12mm and 1/2″. Our heavy duty power posts use all stainless steel hardware to stand up against corrosive environments.
- Connect 2 or more power lines
- Hook up negative return lines to a single cable
- Strong stable base will withstand heavy torque and pulling force
- Designed for use in marine environments: Resists saltwater corrosion
- Stainless steel connection post
- Stainless steel flat washer
- Stainless steel lock washer
- Stainless steel nuts
- Maximum voltage: 0 - 48 VDC
- Maximum current: 250 amps @ 12 VDC
- Base material: Glass-filled nylon
- Available in: Red & Black
- Mounting holes distance: 2.5 in
| Post Material / Conductive Nuts | Spring Washer / Fastener Nuts | Post Size | Part Number | Color |
|---|---|---|---|---|

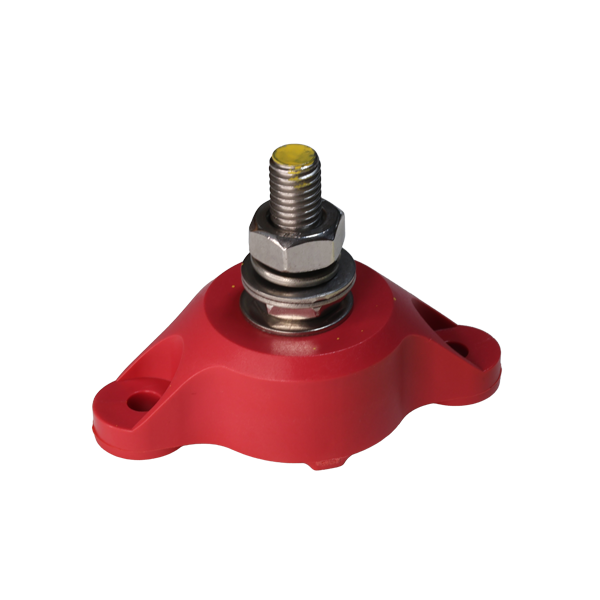

| Stainless Steel / Stainless Steel | Stainless Steel / Stainless Steel | 10 mm | 77510M0N02 | Red |

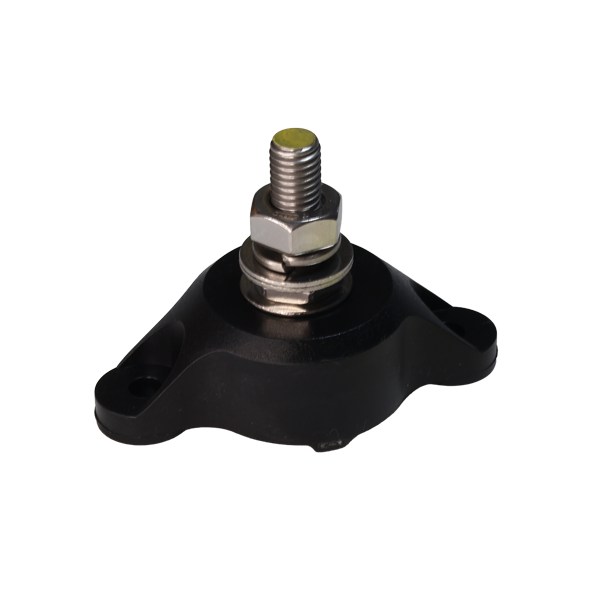

| 77510M0N14 | Black | |||

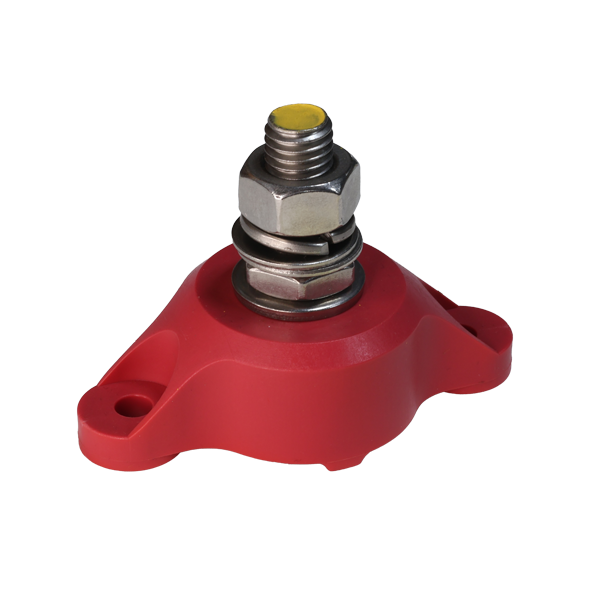

| 12 mm | 77512M0N02 | Red | ||

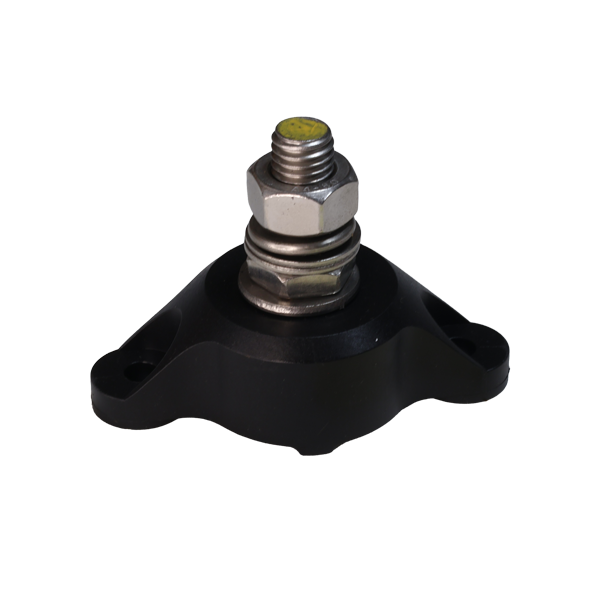

| 77512M0N14 | Black | |||

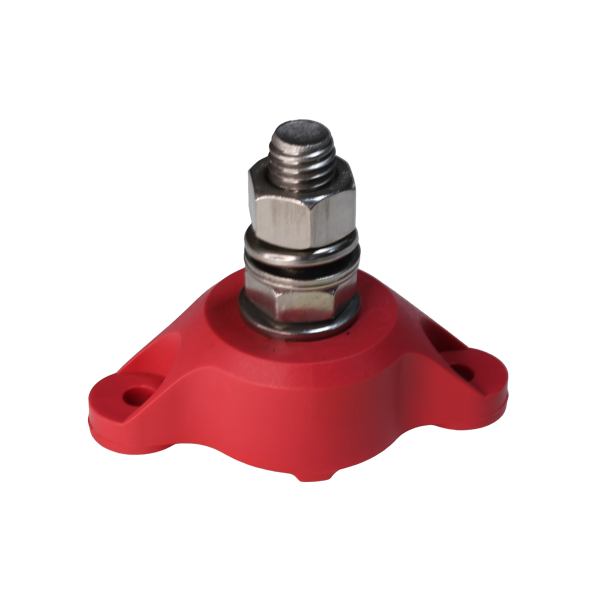

| 1/2" | 77512N0N02 | Red | ||

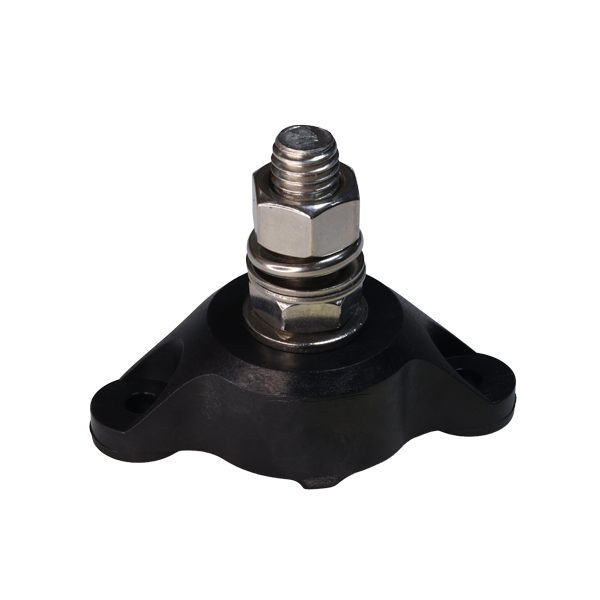

| 77512N0N14 | Black |
