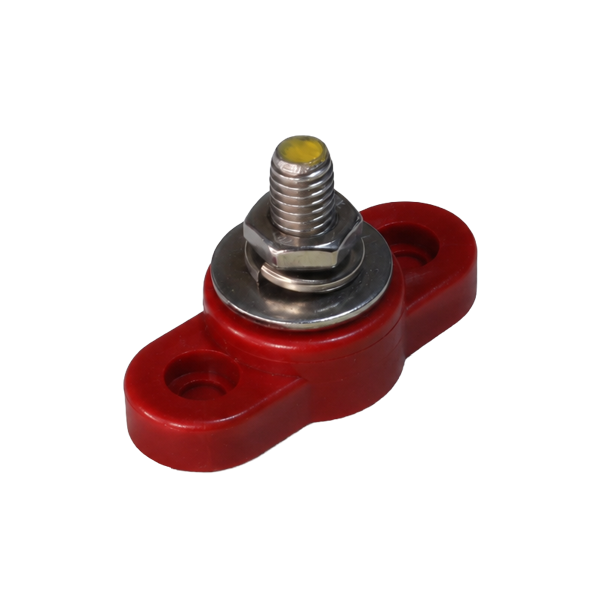

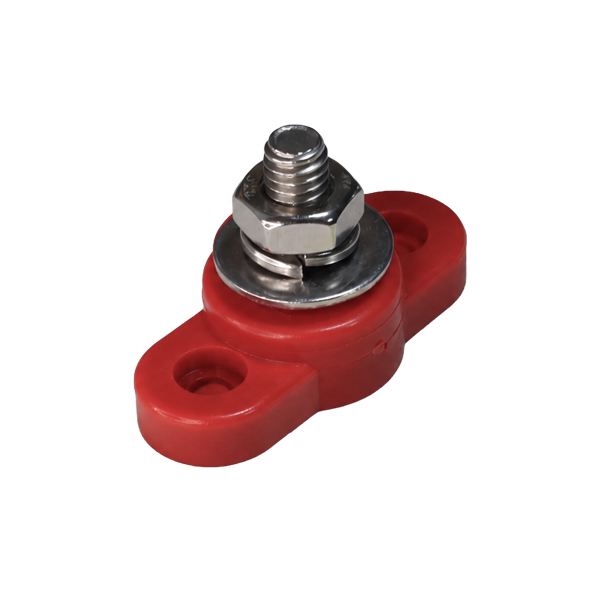

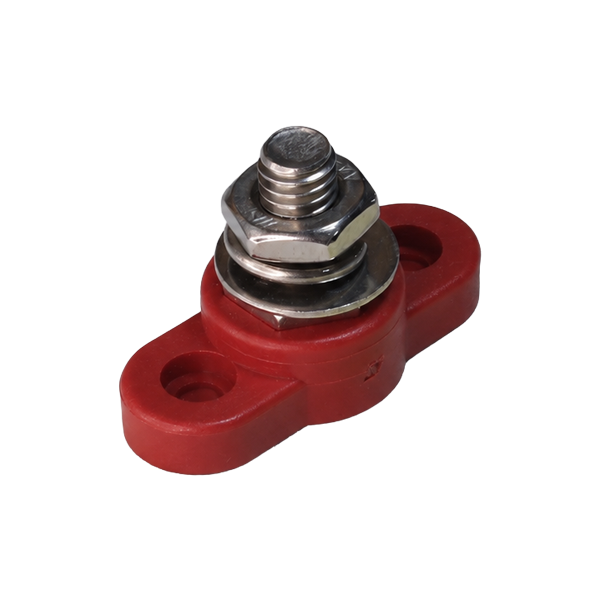

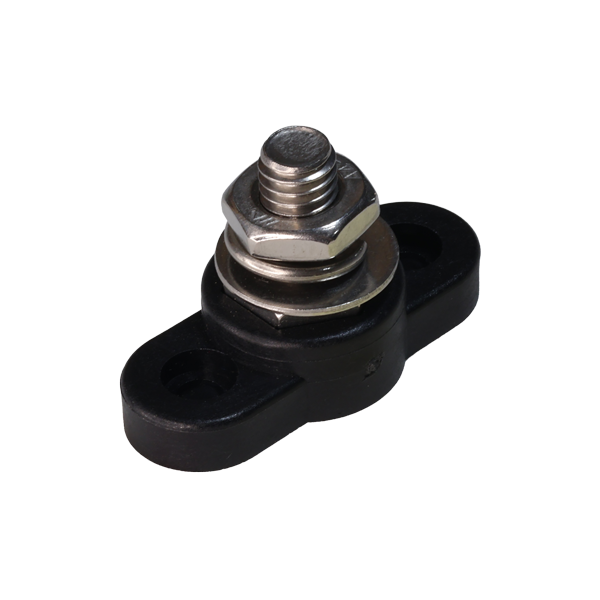

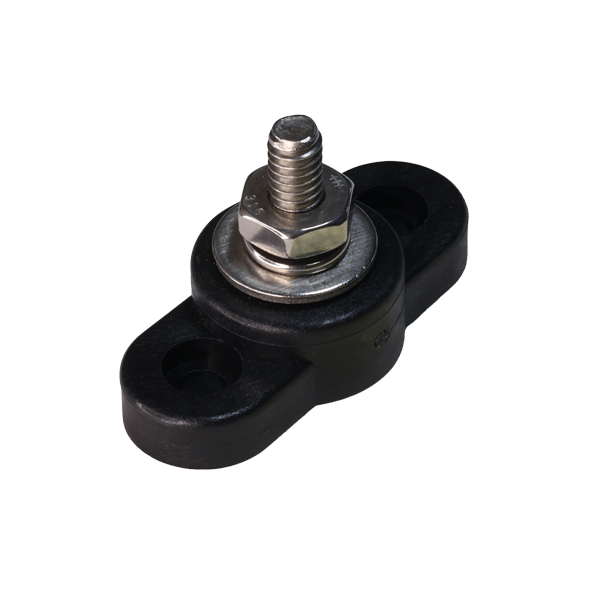

Low Profile Power Post
Low profile power posts can be used in tight areas, where space is at a premium. Available in 6mm, 8mm, 1/4″, 5/16″ and 3/8″ posts.
$0.00
Product details
Low Profile Power Post
Similar to our existing Single Point Power Posts, these post are lower height, to be use in environments where space is at a premium. Post sizes include 6mm, 1/4″ 8mm, 5/16″ and 3/8″.
As these power posts are not meant to carry current, current ratings are not directly applicable. Current limits depend on heat rise through applications terminals.
- Used to connect two or more voltage lines
- Hook up negative return lines to single cable
- Max Voltage: 48vdc
- Base Material: Glass-Filled Nylon
- Stainless Steel Hardware ( Post, Nut, Washers )
- Available Colors: Red & Black
- Different post height is possible. Contact US HQ to discuss.
- Example Current / Temp Test:
- 77337N14 w/ 4/0 cables: 300a = 52c
| Part Number | Full Height | Mounting Center | Thread Size (Post) | Color |
|---|---|---|---|---|
| 77306CN02 | 1.24 in | 1.37 in | 6mm | Red |

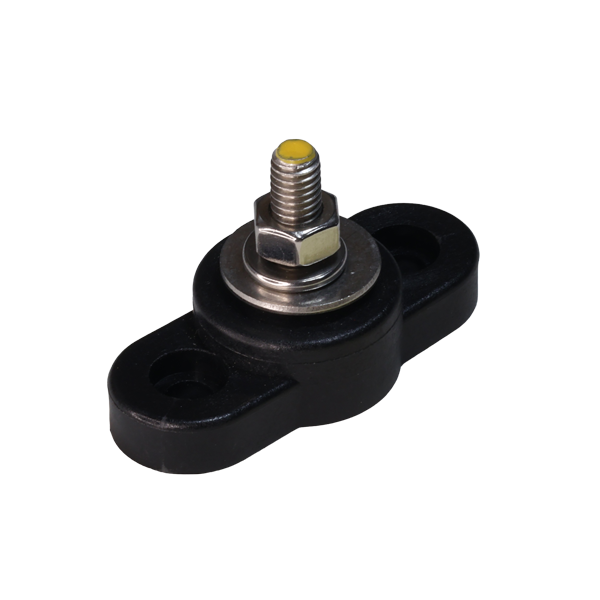

| 77306CN14 | 1.24 in | 1.37 in | 6mm | Black |

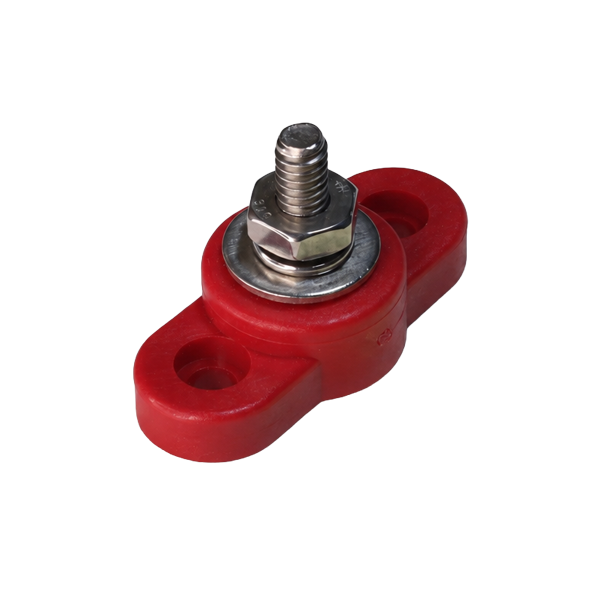

| 77325CN02 | 1.26 in | 1.37 in | 1/4" | Red |
| 77325CN14 | 1.26 in | 1.37 in | 1/4" | Black |
| 77308CN02 | 1.3 in | 1.37 in | 8mm | Red |

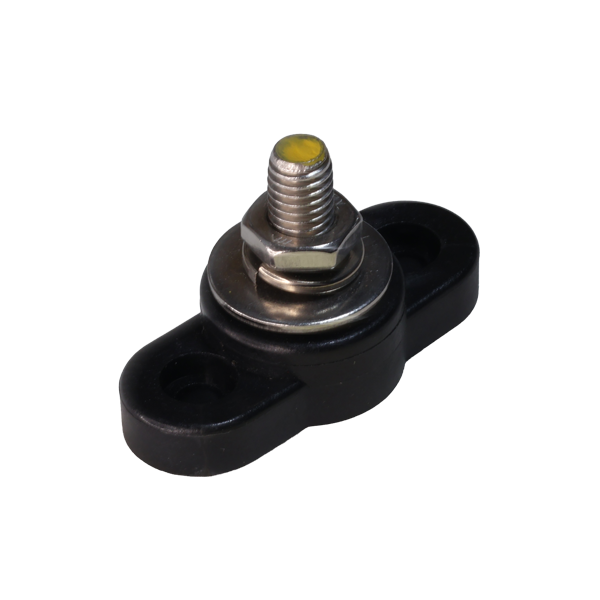

| 77308CN14 | 1.3 in | 1.37 in | 8mm | Black |
| 77331CN02 | 1.3 in | 1.37 in | 5/16" | Red |

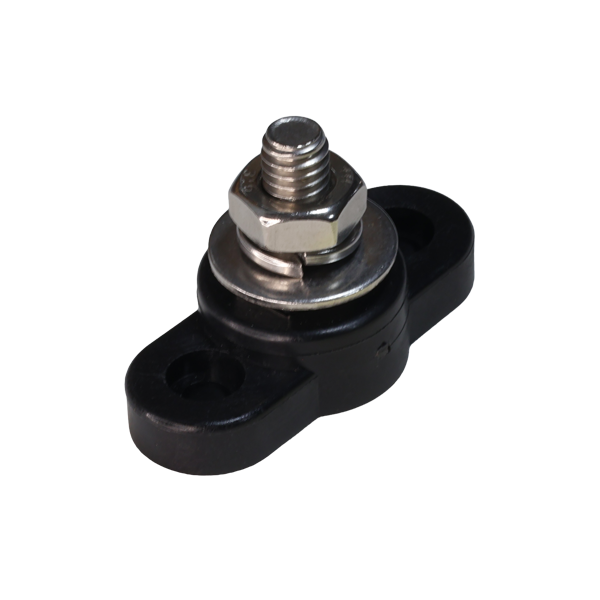

| 77331CN14 | 1.3 in | 1.37 in | 5/16" | Black |
| 77337CN02 | 1.27 in | 1.37 in | 3/8" | Red |
| 77337CN14 | 1.27 in | 1.37 in | 3/8" | Black |
VTE Inc. uses two type of retaining fasteners:
- Conductive Fasteners
- Mechanical Fasteners
Conductive Fasteners
Our conductive fasteners are used where current will pass through the fastener. The electrical properties are such that conductivity is superior to mechanical fasteners.
- Using copper as a standard:
100%
- - Brass conductivity: 37%
- - Stainless steel conductivity: 2.4%
Mechanical Fasteners
Our retaining fasteners are used where current does not need to pass through the fastener. An example of this would be at the end of a connection post, to tighten an assembly.
Some key points:
- Conductive nuts include: brass, tin-plated brass. On some bus material: nickel-plated brass. Brass is used for its superior conductivity to stainless steel.
- Mechanical nuts: stainless steel, steel. Steel is used to tighten, or torque an assembly. Steel is much harder, and can handle higher torque before distortion.
- Brass and copper are more expensive than steel, and are only used where conductivity is required.
- Brass (or plated) nuts are marked by VTE with a Blue Mark. This is to notify the installer that the fastener is for conductivity positions only.
- Conductivity nuts are installed by the factory, and must be left in their original position.
- When installing multiple lug or ring terminals, washers are not recommended between terminals.
