Large 4 Point Terminal Busbar
FSI presents our Large 4 Point Terminal Busbar. These systems allow for multiple connections to positive and negative systems. Each connection post can maintain multiple connections, making them flexible and robust.
| RECOMMENDED: | Positive Connections: 3/8″ Negative Connection: 5/16″ |
$0.00
Product details
Large 4 Point Terminal Busbar
Designed as ‘one half’ of our dual 4 point busbar. Beefy and robust, the large 4 point busbar handles heavy cabling and high current, for heavy duty applications.
- Multiple connection points, to accomodate multiple power connections
- Nickel Plated Brass contact plate: high current & anti-corrosive
- Max Amperage:
- See Table Below
- Max Voltage: 48 vdc
- 5/16", 3/8", M8 or M10 stainless steel connection posts
- Stainless steel hex nuts and washers
- Base Material: 16% Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 5.7"
- Model with cover includes appropriate cover (723 Series) and retaining nuts
- To meet some safety guidelines, protective heat shrink tubing must be used on terminal barrel to insulate against accidental shorts.
| Part Name | Max Amperage @ 12vdc |
Post Size | Cover | Color |
|---|---|---|---|---|
| 74312N0N02 | 225 | 5/16" | No | Red |

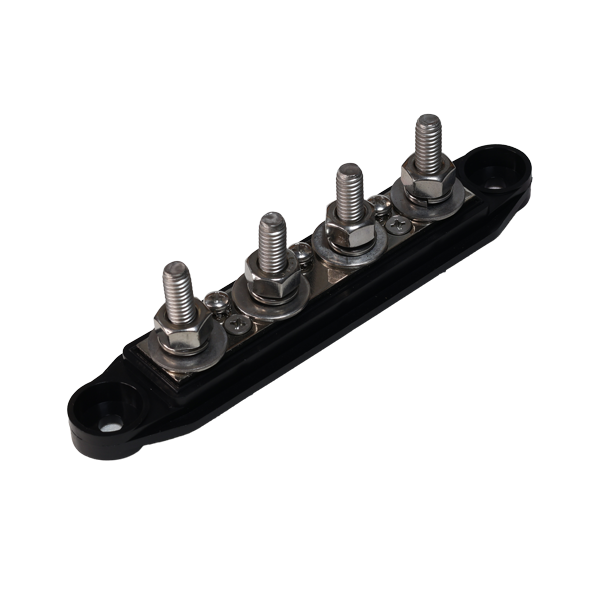

| 74312N0N14 | 225 | 5/16" | No | Black |
| 74312N1N02 | 225 | 5/16" | 723N1 | Red |
| 74312N1N14 | 225 | 5/16" | 723N5 | Black |
| 74375N0N02 | 250 | 3/8" | No | Red |
| 74375N0N14 | 250 | 3/8" | No | Black |

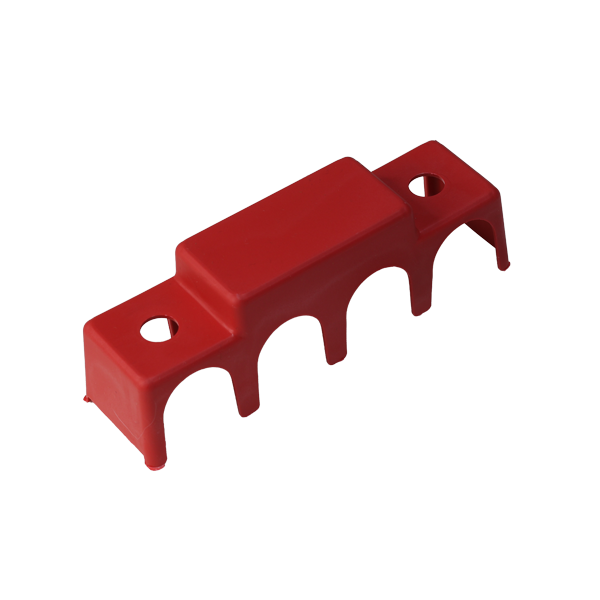

| 74375N1N02 | 250 | 3/8" | 723N2 | Red |

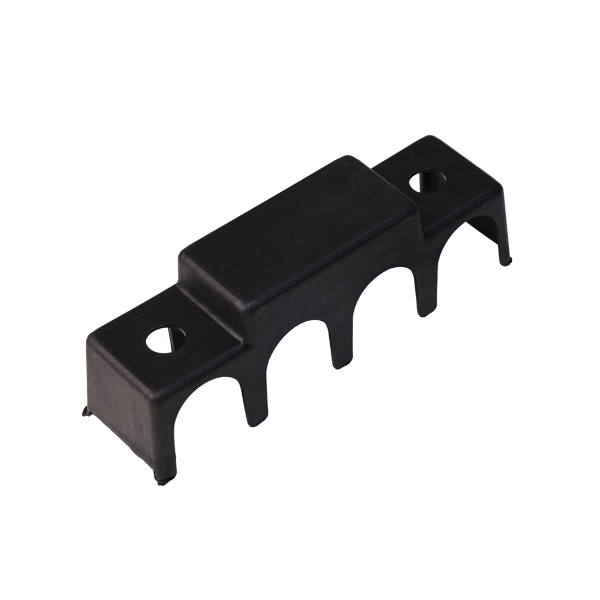

| 74375N1N14 | 250 | 3/8" | 723N6 | Black |
| 74008N0N02 | 225 | 8mm | No | Red |
| 74008N0N14 | 225 | 8mm | No | Black |
| 74008N1N02 | 225 | 8mm | 723N3 | Red |
| 74008N1N14 | 225 | 8mm | 723N7 | Black |
| 74010N0N02 | 250 | 10mm | No | Red |
| 74010N0N14 | 250 | 10mm | No | Black |
| 74010N1N02 | 250 | 10mm | 723N4 | Red |
| 74010N1N14 | 250 | 10mm | 723N8 | Black |
