ANL Fuse Holder
Protect your electrical components and wiring with high amperage ANL fuses. Secure your ANL fuses with VTE ANL Fuse Holders, a low-cost and practical platform for over-current protection.
$0.00
Product details
ANL Fuse Holder
Protect your electrical components and wiring with high amperage ANL fuses. Secure your ANL fuses with VTE ANL Fuse Holders, a low-cost and practical platform for over-current protection.
- Fuse Holder ANB740 Max Amperage: 300 amps @ 12 vdc
- For fuses over 300 amp, VTE recommends the Hi-Amp ANL Fuse Holder
- Holder Max Voltage: 48 vdc
- ANB740 Series accepts large and narrow slot ANL fuses
- ANL Fuse Kit includes fuse holder and two (2) 487 Series terminal insulators, hardware and clear center cover
- ANL Fuses sold seperately
- Included terminal insulators protect conductive areas from accidental shorts, complying with ABYC / USCG requirements
- Connection Post Material : Stainless Steel
- Base Material: Glass filled nylon
- Connection Post: Stainless steel
- Lock Washer: Stainless steel
- Flat Washer: Brass
| Kit Number | Post Size | Color | Insulators (2) | Cable Diameter |
|---|---|---|---|---|
| ANB740N0N02 | 5/16" | Red | 487N9V02 | 0.75 in |
| ANB740N0N14 | 5/16" | Black | 487N9V14 | 0.75 in |

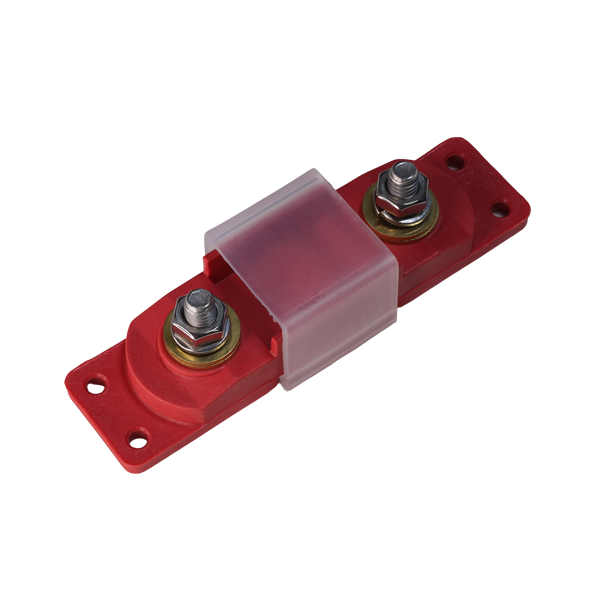

| ANB740N9N02 | 5/16" | Red | 487N8V02 | 0.65 in |

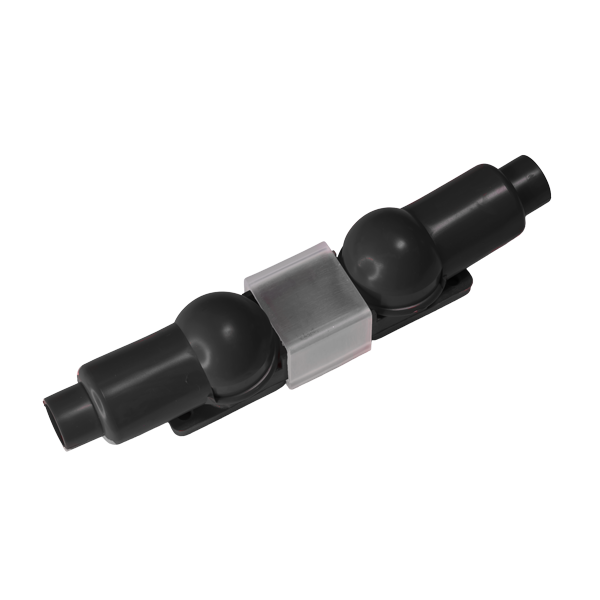

| ANB740N9N14 | 5/16" | Black | 487N8V14 | 0.65 in |
| ANB740N8N02 | 5/16" | Red | 487N7V02 | 0.6 in |
| ANB740N8N14 | 5/16" | Black | 487N7V14 | 0.6 in |
| ANB740N7N02 | 5/16" | Red | 487N6V02 | 0.5 in |
| ANB740N7N14 | 5/16" | Black | 487N6V14 | 0.5 in |
| Series Name | ANB740 | ANB753 | MFB736 | TFB735 |
|---|---|---|---|---|
| Max Fuse Rating @ 12vdc | 300a | 750a | 250a | 400a |
| Max DC Volts | 48 | 48 | 48 | 48 |
| Max AC Volts | Not Rated | Not Rated | Not Rated | Not Rated |
| Continuous Duty Amperage | 198a | 495a | 165a | 264a |
| Max Amperage 1 Minute | 330a | 825a | 275a | 440a |
