ANL Hi-Amp Fuse Holder
FSI is offering a High Amperage ANL Fuse Holder. This fuse holder can be utilized in applications with up to 750amp fuse.
$0.00
Product details
ANL Fuses & Fuse Holder
A big brother to our ANL Fuse Holder, the ANL High Amp Fuse Holder protects your main current lines from over current situations. The ANB753 Series can be used with ANL fuses up to 750 amps. Internal standoffs help to disperse heat buildup in the fuse holder, while helping to maintain a secure mounting position.
- Highly cost effective solutions for up to 750amp fusing
- ANL Fuse Kit includes fuse block, and cover
- Available Posts: 5/16", 3/8"
- ANL Fuses sold seperately.
- Max Amperage: 750 amps @ 12 vdc
- Maximum voltage : 32vdc
- Colors Available : Red & Black

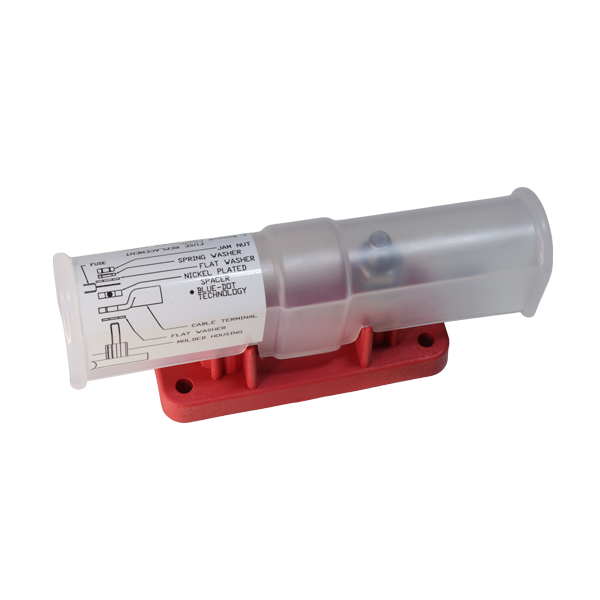

- Included cover: 751N9P00 protects conductive areas from accidental shorts, complying with ABYC / USCG safety requirements
- Base Material : Glass-filled nylon
- Connection Post Material : Stainless Steel
- Lock Washer Material : Stainless Steel
- Flat Washer Material : Stainless Steel
- Conductive Spacer Material : Nickel-Plated Copper
| Kit Number | Post Size | Color |
|---|---|---|
| ANB753N7N02 | 5/16" | Red |

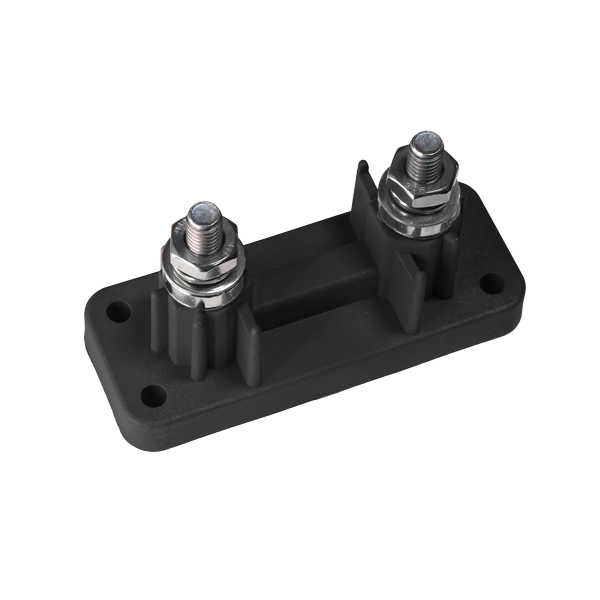

| ANB753N7N14 | 5/16" | Black |
| ANB753N8N02 | 3/8" | Red |
| ANB753N8N14 | 3/8" | Black |
| Series Name | ANB740 | ANB753 | MFB736 | TFB735 |
|---|---|---|---|---|
| Max Fuse Rating @ 12vdc | 300a | 750a | 250a | 400a |
| Max DC Volts | 48 | 48 | 48 | 48 |
| Max AC Volts | Not Rated | Not Rated | Not Rated | Not Rated |
| Continuous Duty Amperage | 198a | 495a | 165a | 264a |
| Max Amperage 1 Minute | 330a | 825a | 275a | 440a |
