Tab Type Terminal Busbar
FSI is now offering a Tab-Type Busbar. This busbar accepts ‘push-on’ type quick disconnect terminals. These ‘push-on’ type terminals greatly increase production speed, and reduce labor costs. Initial testing indicates installation times of 2.5 times faster than standard fork terminals, and 3.5 times faster than standard ring terminals.
$0.00
Product details
Tab Type Terminal Busbar
The Tab-Type Busbar is our solution for fast production times. Each 10 point layer ( up to 3 ) has push on quick disconnect terminal positions. These push-on terminals can improve production installation times by as much as 340% over ring type terminals.
- Highly cost effective solution for Fast Busbar Connections
- Base Material : Glass-filled nylon
- Max Amperage: 55 amps @ 12 vdc per tier
- 20 amps per connection
- Max Voltage: 48 vdc
- Base Colors Available : Red & Black
- Optional cover kit protects conductive areas from accidental shorts, complying with ABYC / ISO / USCG requirements
- Connection Post Material : Stainless Steel
- Lock Washer Material : Stainless Steel
- Flat Washer Material : Stainless Steel
- Cover will not fit on 40 point version
| Part Numbers | Points | Color |
|---|---|---|
| TTB710N02 | 10 | Red |

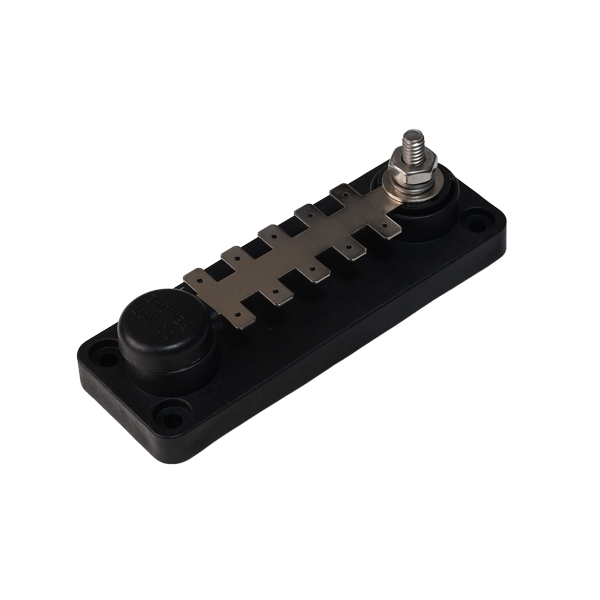

| TTB710N14 | 10 | Black |

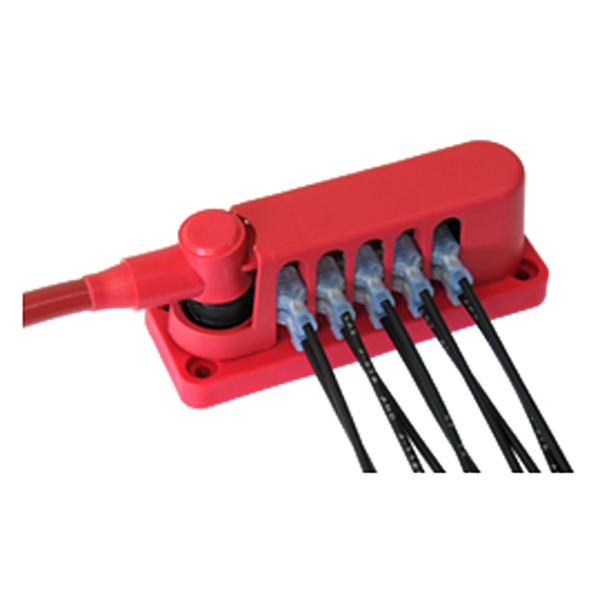

| TTB720N02 | 20 | Red |
| TTB720N14 | 20 | Black |
| TTB730N02 | 30 | Red |
| TTB730N14 | 30 | Black |
| TTB740N02 | 40 | Red |
| TTB740N14 | 40 | Black |
| * Cover will not fit on 40 point version | ||
| Insulation Kit Part Numbers | Color | Cover | Terminal Insulators |
|---|---|---|---|

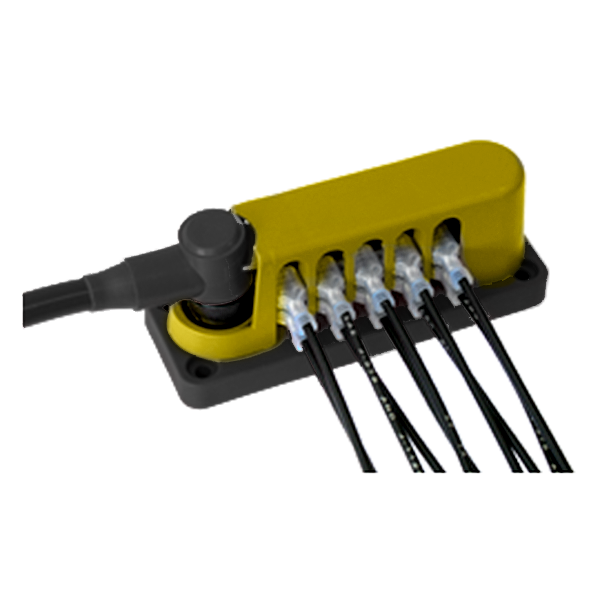

| 7102030N1 | Yellow | 335N9P05 | 216N1V05 & 216N2V05 |
| 7102030N2 | Red | 335N9P02 | 216N1V02 & 216N2V02 |

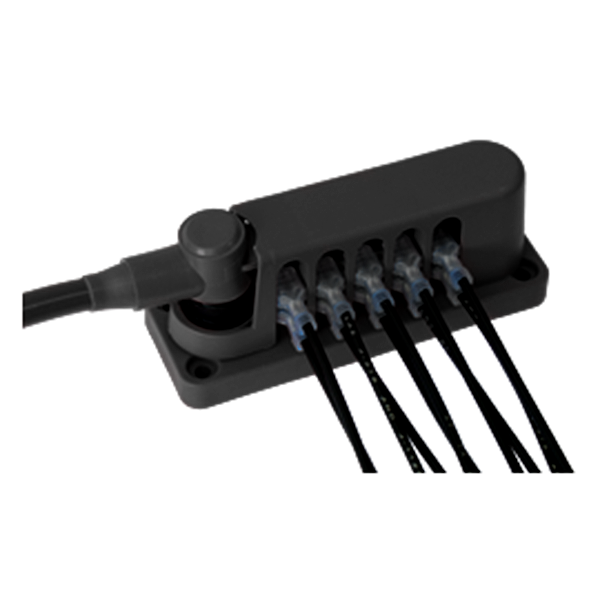

| 7102030N3 | Black | 335N9P14 | 216N1V14 & 216N2V14 |
