Copper Core Flange Bushing
VTE has developed an innovative and unique solution for passing current through a barrier. Our Copper Core Flange Bushing brings new features, low cost and ease of use to your current passing applications.
$0.00
Product details

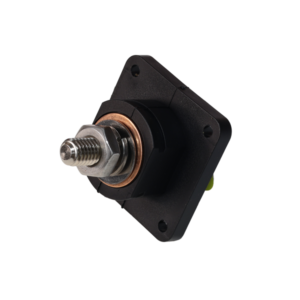

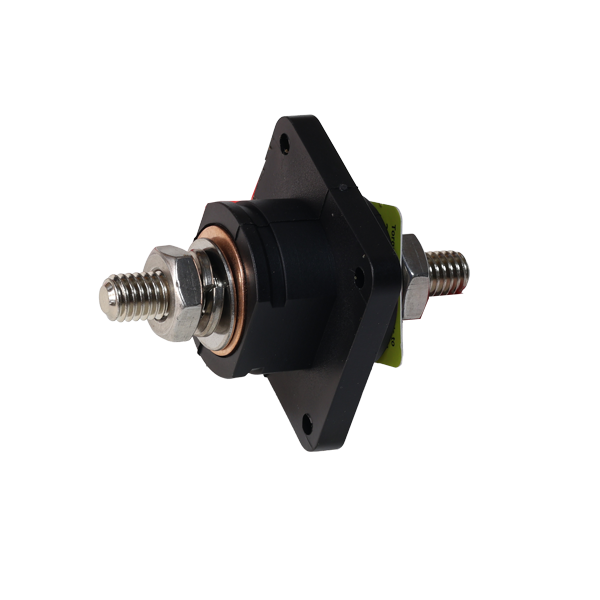

Copper Core Flange Bushing
Our Copper Core Flange Bushings have been designed with these key components in mind:
High Energy Transfer
The Copper Core is cold swaged into a hex shape, providing high energy transfer performance. The conductive materials are placed exactly where needed, reducing cost and improving performance.
High Torque
Significant amounts of fastener torque is required when attaching multiple 4/0 ga (120mm2) cables. Brass shaft devices may fail under high torque loads. Our Copper Core Power Bushing uses a 2/8″ (or 10mm) Nickel-plated steel shaft to provide high torque value.
High Anti-Rotation
Four mounting holes ensure secure mounting for anti-rotation. Bushing can use round or double-d hole for added anti-rotation and legacy applications. Inner copper core and shaft are swaged into a hex shape and inserted warm, to ensure tight fitting and high anti-rotation, providing 100% stability when fastening cables.
Multiple Weatherproof Options
Our CCFB can be ordered with a weatherproof gasket, as well as 232 Series Terminal Insulators. The insulators snap onto the groove ring to prevent accidental shorting, as well as weather resistance to IP65. Both sides of bushing can be insulated.
- For panel thickness up to .40" (10.7mm)
- Easy to install
- Very low cost
- Copper Core SAE Max Amperage:
- Peak: 550amp @ 12vdc (6.6kw)
- Duty Cycle: 80%
- Copper Core Metric Max Amperage:
- Peak: 450amp @ 12vdc (5.4kw)
- Duty Cycle: 80%
- Max Voltage: 48vdc

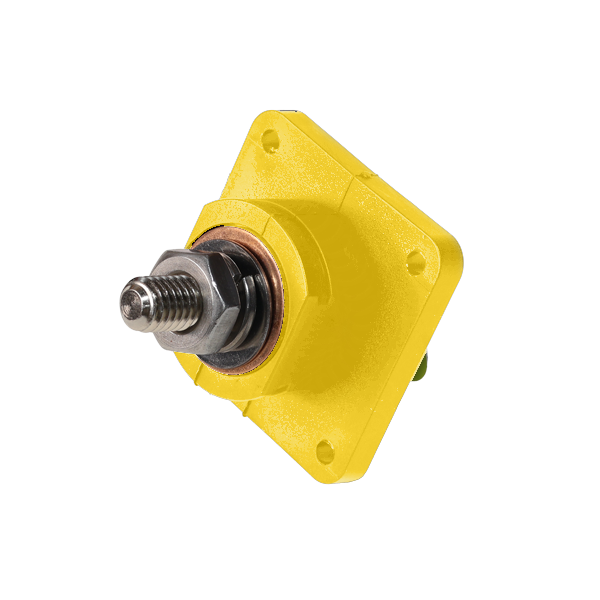

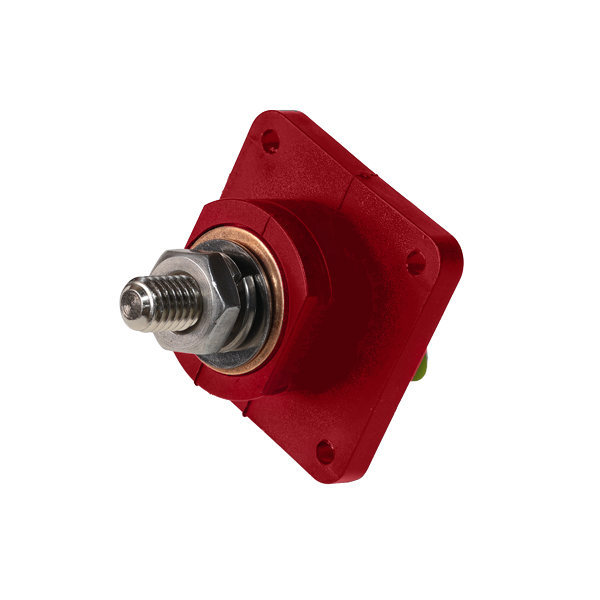

- Available in Red, Black & Yellow
- Bushing Mterial: Glass-Filled Nylon
- Post Material: Nickel Plated Mild Steel
- Fastener (nut) Material: Stainless Steel
- Can be fastened to panel with screws or nut & bolt
 Copper Core Flange Bushing |
3/8" Post 550 amp max | Normal use | CCFB376N02 | Red |
| CCFB376N05 | Yellow | |||
| CCFB376N14 | Black | |||
| Weather Proof | CCFB376N02W | Red | ||
| CCFB376N05W | Yellow | |||
| CCFB376N14W | Black | |||
| 10mm post 450 amp max | Normal use | CCFB106N02 | Red | |
| CCFB106N05 | Yellow | |||
| CCFB106N14 | Black | |||
| Weather Proof | CCFB106N02W | Red | ||
| CCFB106N05W | Yellow | |||
| CCFB106N14W | Black | |||
Use Terminal Insulators to comply with industry standards
232N3 Series Insulator
- Accepts cable size 2 awg - 2/0 awg
- Meets IP65 weatherproof rating
- Meets ISO, ABYC & USCG Safety Requirements for energized terminals
W model includes (1) re-inforced silicone gasket and (1) 232N3 terminal insulator
