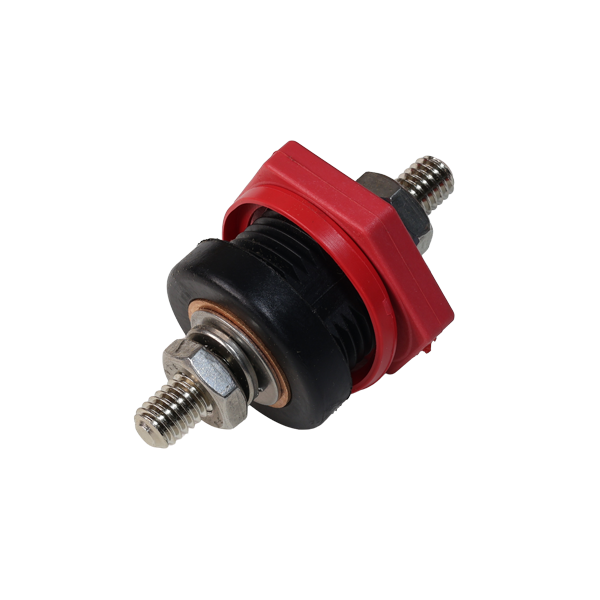

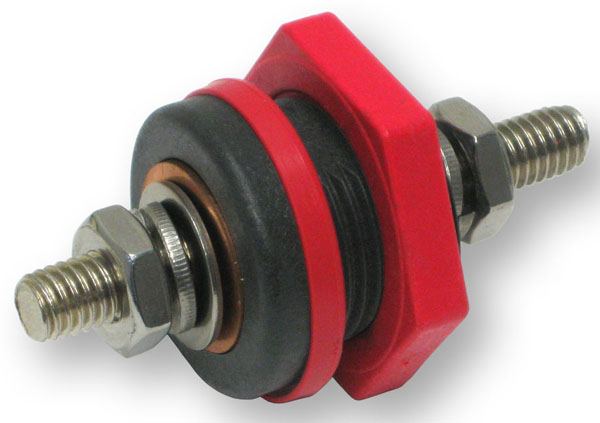

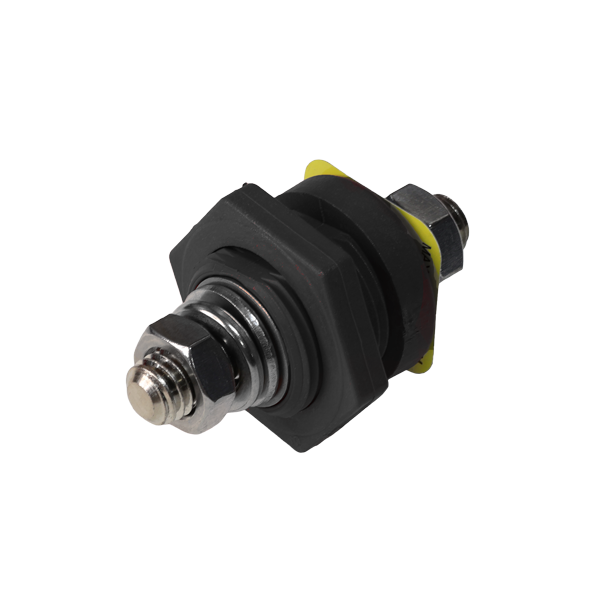

Copper Core Power Bushing

Our Copper Core Power Bushings have been designed with these key components in mind:

High Energy Transfer
The Copper Core is cold swaged into a hex shape, providing un-paralleled high energy transfer performance. The conductive materials are placed exactly where needed, reducing cost and improving performance.

High Torque
Significant amounts of fastener torque is required when attaching multiple 4/0 ga (120mm2) cables. Brass shaft devices just don’t measure up. At the required torque, brass posts may fail. Our Copper Core Power Bushing uses a 3/8″ (or 10mm) Nickel-plated steel shaft to provide high torque value.

High Anti-Rotation
First, the power bushing is molded in a unique shape, to fit into a punch hole provided by a Greenlee Punch (#60098). This ensures the bushing will not spin in its location. We then shaped the inner sleeve passage to a hex shape, when coupled with our hex shape core insert, provide 100% stability when fastening cables.

Weatherproof Available
The inner panel seal provides a secure fastening base for our. 258 Series Terminal Insulator. This insulator fits snugly around the panel seal, and when used with a 4/0 ga (120mm2)cable, provides the assembly with IP-65 rating weatherproofing.

Low Product Cost
VTE has specifically designed a unique mold and assembly procedure for the Copper Core Power Bushing. The entire process of molding and assembling is performed in one operation, at one station. This greatly reduces our labor cost, which greatly reduces the end cost to the consumer.

Low Assembled Cost
Unique and innovative, our Copper Core Power Bushing incorporates a large PVC fastening nut. This nut fastens the bushing into place, allowing for quick installation. The installion hardware is minimized, further improving the efficiency of the install process.
