Single Point Power Post
Single point power posts can be used to connect power lines or consolidate ground lines. Our single point posts come in large and small base, and have post sizes from #10 up to 3/8″. At a very attractive cost, our single point posts are easy on the budget and very popular.
- 770 Series (Small Base)
- 771 Series (Large Base)
$0.00
Product details
Single Point Power Post
Single point power posts can be used to connect power lines or consolidate ground lines. Our single point posts come in large and small base, and have post sizes from #10 up to 3/8″. At a very attractive cost, our single point posts are easy on the budget and very popular.
- Used to connect two or more voltage lines
- Hook up negative return lines to single cable
- Available with large or small base
- Max Amperage: 160 amps @ 12 vdc
- Max Voltage: 48 vdc
- Available in multiple stud heights (optional)
- Available material : Glass-Filled nylon
- Available Colors : Red & Black
- Connection post : Stainless steel
- Connection nuts : Stainless Steel
- Flat washer : Stainless steel
- Spring washer : Stainless steel
| Part Number | Base Size | Mounting Center | Thread Size (post) | Color |
|---|---|---|---|---|
| 77010N02 | Small | 1.36" | #10 | Red |
| 77010N14 | Small | 1.36" | #10 | Black |
| 77025N02 | Small | 1.36" | 1/4" | Red |
| 77025N14 | Small | 1.36" | 1/4" | Black |
| 77031N02 | Small | 1.36" | 5/16" | Red |
| 77031N14 | Small | 1.36 in | 5/16" | Black |
| 77037N02 | Small | 1.36" | 3/8" | Red |
| 77037N14 | Small | 1.36" | 3/8" | Black |
| 77008N02 | Small | 1.36" | 8mm | Red |
| 77008N14 | Small | 1.36" | 8mm | Black |
|
|
||||
| 77125N02 | Large | 2.5" | 1/4" | Red |
| 77125N14 | Large | 2.5" | 1/4" | Black |

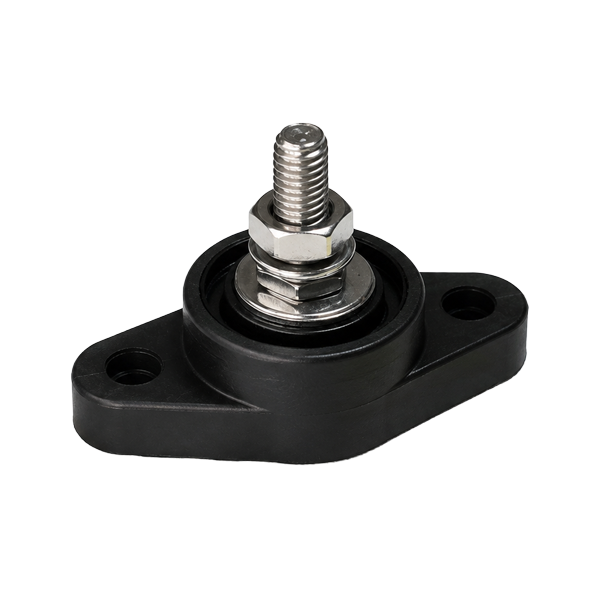

| 77131N02 | Large | 2.5" | 5/16" | Red |
| 77131N14 | Large | 2.5" | 5/16" | Black |
| 77137N02 | Large | 2.5" | 3/8" | Red |
| 77137N14 | Large | 2.5" | 3/8" | Black |
| 77108N02 | Large | 2.5" | 8mm | Red |
| 77108N14 | Large | 2.5" | 8mm | Black |
