Dual 4 Point Terminal Busbar
FSI presents our Dual Terminal Bus. This systems allow for multiple connections to positive and negative systems on one connection block. Each connection side can maintain multiple connections, of differing size.
$0.00
Product details
Dual 4 Point Terminal Busbar
Our most versatile busbar, the dual 4 point offers (4) high current connections, as well as (3) lower current connections on each side. The positive side has a red sticker and red markings on each post to indicate positive polarity. The dual 4 point busbar can be outfitted with a protective cover, protecting connection points and complying with industry standards.
- Multiple connection points, to accomodate multiple power connections
- Nickel Plated Brass contact plate: high current & anti-corrosive
- Secure way to consolidate ground systems
- Max Amperage: 250 amps @ 12 vdc total
- Max Voltage: 48 vdc
- Positive: 3/8" stainless steel connection posts
- Negative: 5/16" stainless steel connection posts
- Both polarity sides offer 3 smaller 15amp connection points
- Base Material: Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 4.9"
- Optional cover not included
- Also available with 3/8" connection posts on both sides
- Also available with 5/16" connection posts on both sides
- To meet some safety guidelines, protective heat shrink tubing must be used on terminal barrel to insulator against accidental shorts.
| Part Number | Color | Posts Side A | Posts Side B |
|---|---|---|---|

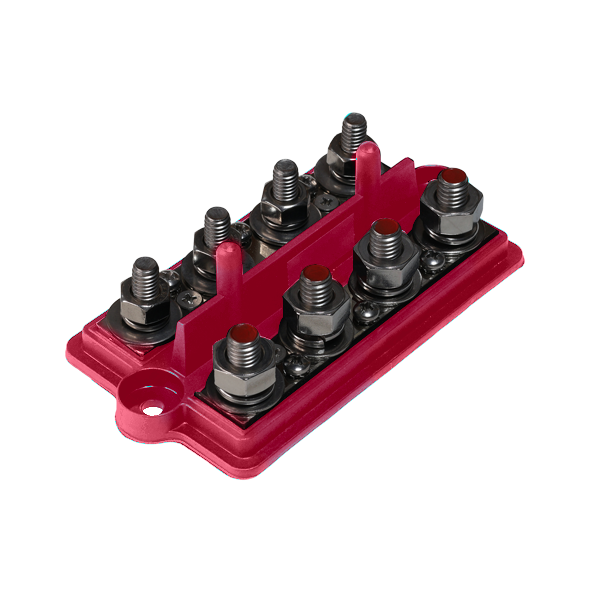

| 738837N0N02 | Red | 3/8" | 3/8" |
| 738834N0N14 | Black | 3/8" | 5/16" |
| 738831N0N14 | Black | 5/16" | 5/16" |

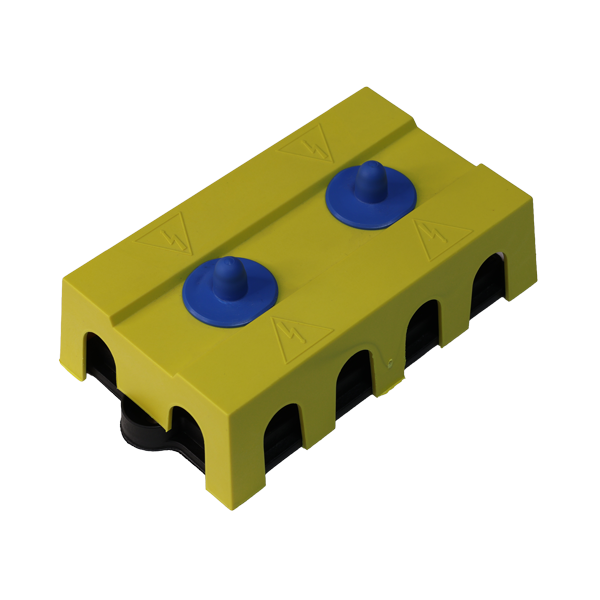

| 738N3P05 | Yellow |
