Mega Fuse Holder
Protect your main current lines, battery and alternator with the VTE MEGA fuse holders. Manufactured in the USA by FSI, the MEGA fuse holders are a low cost and effective way of protecting your circuit paths.
$0.00
Product details
Mega Fuse Holder
Secure your Mega fuses with VTE Mega Fuse Holders, a low-cost and practical platform for over-current protection.
- Mega Fuse Holder Max Amperage: 250 amps @ 12 vdc
- Holder Max Voltage: 48 vdc
- Mega-Fuse Kit includes fuse holder and two (2) 405 Series terminal insulators
- Mega-Fuses sold seperately
- 5/16" stud accepts lug / ring terminals up to 2/0 AWG
- Base Material : Glass-filled nylon (red & black)
- Included terminal insulators protect conductive areas from accidental shorts, complying with ABYC / USCG requirements
- Connection Post Material : Stainless Steel
| Kit Number | Base Color | Insulators (2) |
|---|---|---|

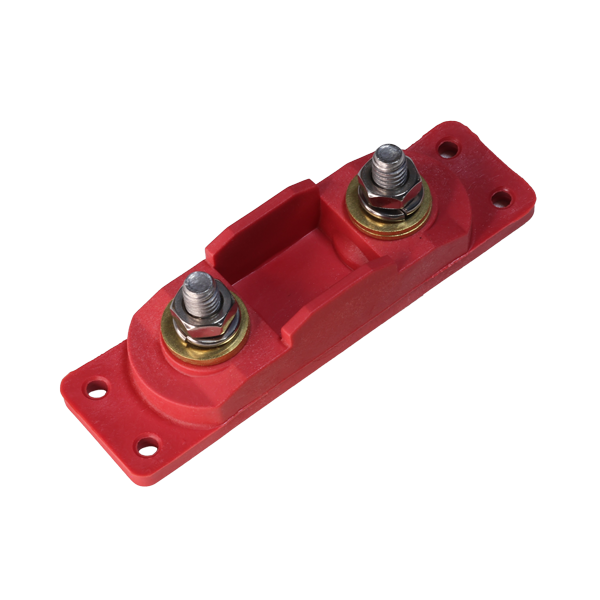

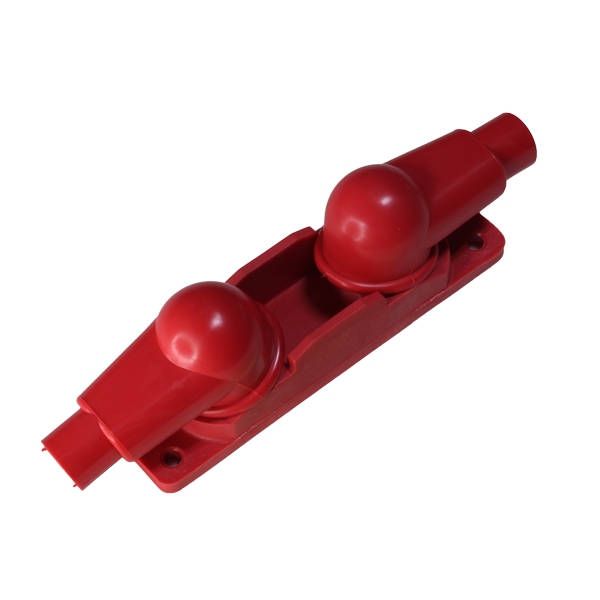

| MFB736N9N02 | Red | 405N9V02 |

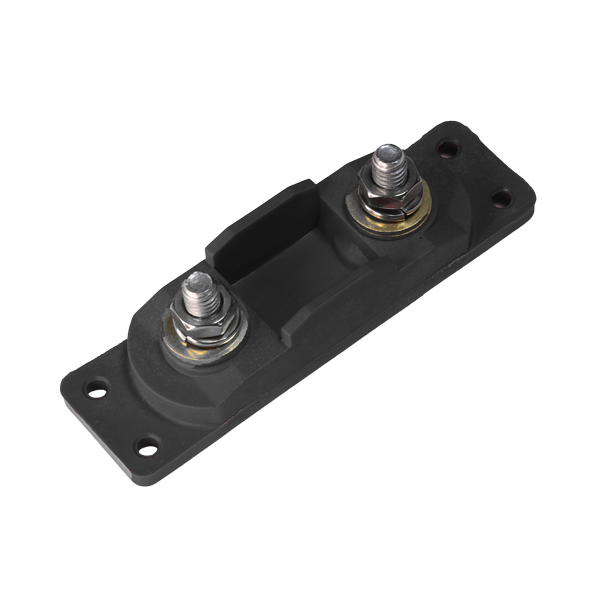

| MFB736N9N14 | Black | 405N9V14 |
| Series Name | ANB740 | ANB753 | MFB736 | TFB735 |
|---|---|---|---|---|
| Max Fuse Rating @ 12vdc | 300a | 750a | 250a | 400a |
| Max DC Volts | 48 | 48 | 48 | 48 |
| Max AC Volts | Not Rated | Not Rated | Not Rated | Not Rated |
| Continuous Duty Amperage | 198a | 495a | 165a | 264a |
| Max Amperage 1 Minute | 330a | 825a | 275a | 440a |
