ANL Hi-Amp Fuse Holder

VTE Inc. is offering a High Amperage ANL Fuse Holder. This fuse holder can be utilized in applications with up to 750amp fuse.

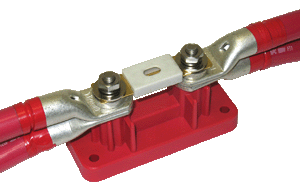

ANB753N7N02 with Ceramic ANL Fuse

Fuse Holder Specifications & Numbers

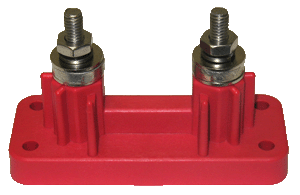

ANB753 with ceramic fuse


ANB753 with included cover

  • Highly cost effective solutions for up to 750amp fusing
  • ANL Fuse Kit includes fuse block, and cover
  • Available Posts: 5/16", 3/8"
  • ANL Fuses sold seperately.
  • Max Amperage: 750 amps @ 12 vdc
  • Maximum voltage : 32vdc
  • Colors Available : Red & Black
  • Included cover: 751N9P00 protects conductive areas from accidental shorts, complying with ABYC / USCG safety requirements
  • Base Material : Glass-filled nylon
  • Connection Post Material : Stainless Steel
  • Lock Washer Material : Stainless Steel
  • Flat Washer Material : Stainless Steel
  • Conductive Spacer Material : Nickel-Plated Copper

Kit Number Post Size Color
ANB753N7N02 5/16" Red
ANB753N7N14 5/16" Black
ANB753N8N02 3/8" Red
ANB753N8N14 3/8" Black


For quantities under 25 please go to VTE Warehouse
