Low Profile Power Post
Low profile power posts can be used in tight areas, where space is at a premium. Available in 6mm, 8mm, 1/4", 5/16" and 3/8" posts.
|
|
Click options to see different configurations 6 mm - 77306 1/4" - 77225 8 mm - 77308 5/16" - 77331 3/8" - 77337 Conductive VS Retaining Nuts Blue Dot Technology |

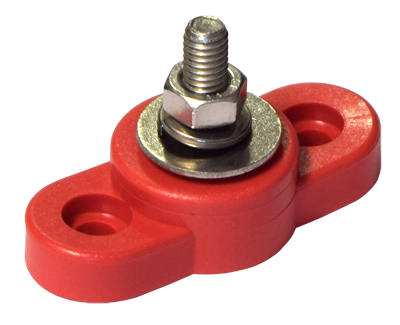

77306CN02 |

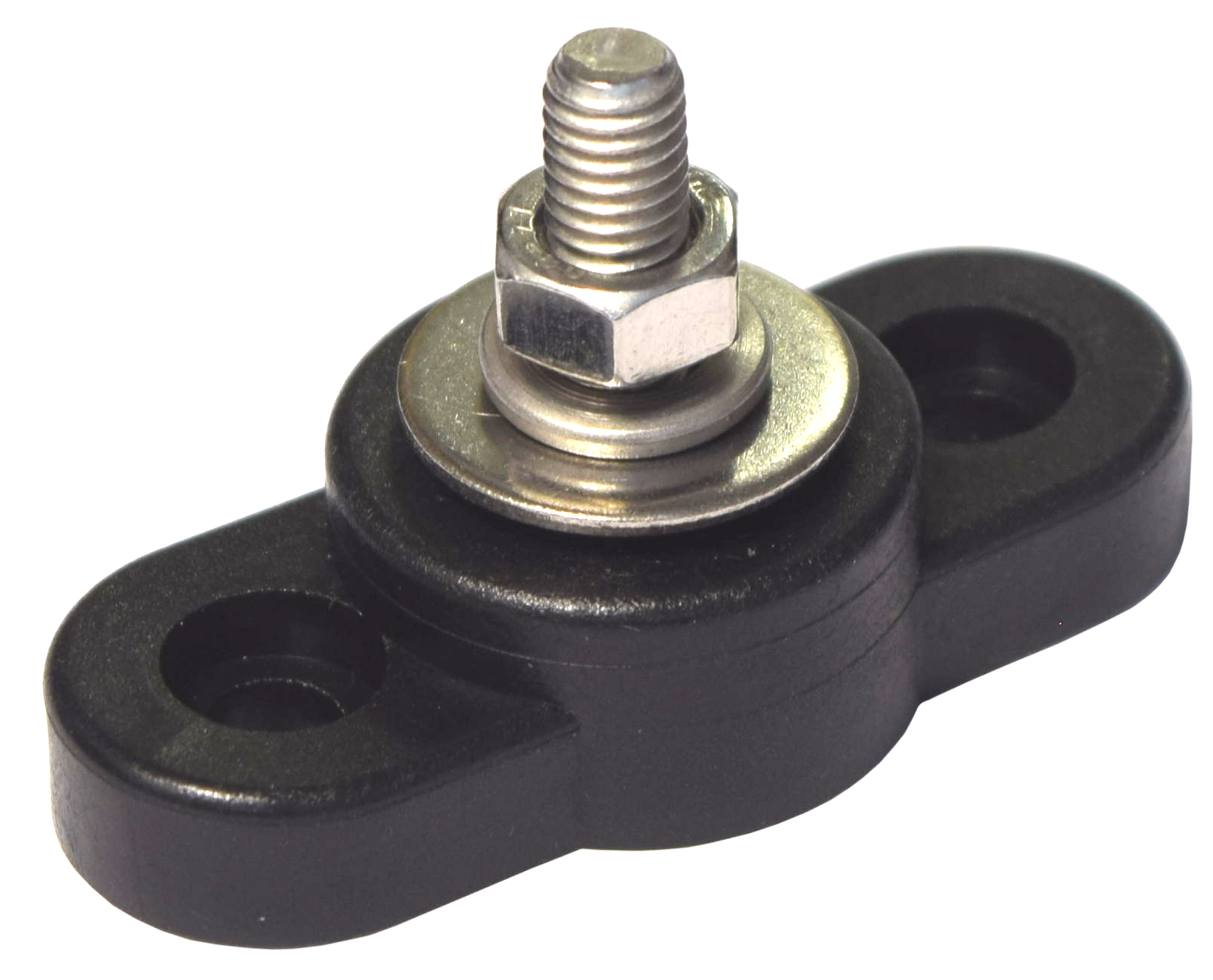

77306CN14 |
Stainless Steel Post Stainless Steel Nut Stainless Steel Flat & Lock Washers |
As these power posts are not meant to carry current, current ratings are not directly applicable. Current limits depend on heat rise through applications terminals.
With optional terminal insulator - VTE 795V02. Clilck image to see specifications.
With optional terminal insulator - VTE 956D9V02. Click image to see specifications.
- Used to connect two or more voltage lines
- Hook up negative return lines to single cable
- Max Voltage: 48vdc
- Base Material: Glass-Filled Nylon
- Stainless Steel Hardware ( Post, Nut, Washers )
- Available Colors: Red & Black
- Different post height is possible. Contact US HQ to discuss.
- Example Current / Temp Test:
- 77337N14 w/ 4/0 cables: 300a = 52c
| Part Number | Full Height | Mounting Center | Thread Size (Post) | Color |
|---|---|---|---|---|
| 77306CN02 | 1.24 in | 1.37 in | 6mm | Red |
| 77306CN14 | 1.24 in | 1.37 in | 6mm | Black |
| 77325CN02 | 1.26 in | 1.37 in | 1/4" | Red |
| 77325CN14 | 1.26 in | 1.37 in | 1/4" | Black |
| 77308CN02 | 1.3 in | 1.37 in | 8mm | Red |
| 77308CN14 | 1.3 in | 1.37 in | 8mm | Black |
| 77331CN02 | 1.3 in | 1.37 in | 5/16" | Red |
| 77331CN14 | 1.3 in | 1.37 in | 5/16" | Black |
| 77337CN02 | 1.27 in | 1.37 in | 3/8" | Red |
| 77337CN14 | 1.27 in | 1.37 in | 3/8" | Black |
